Galvanized electrostatic spray or PVC dipped coating SHS post welded mesh fence

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 02
Minimum Order Quantity 50sets
Price usd18-usd26
Packaging Details Pallet
Delivery Time 20-60days
Payment Terms L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability 1000 Piece/sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name YMWY Type Welded Mesh
Hole Shape Square Height 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m
Material Low-Carbon Iron Wire, Galvanized Iron Wire Surface Treatment Galvanized 、Powder Coated Or PVC Coated
Width 2.50m, 2.75m, 3.0m Wire Gauge 2.0mm-6.0mm
Length 2.0m-2.5m Mesh Size 50*100mm, 50*200mm
Leave a Message
Product Description

CURVY WELDING MESH FENCING

Product Description

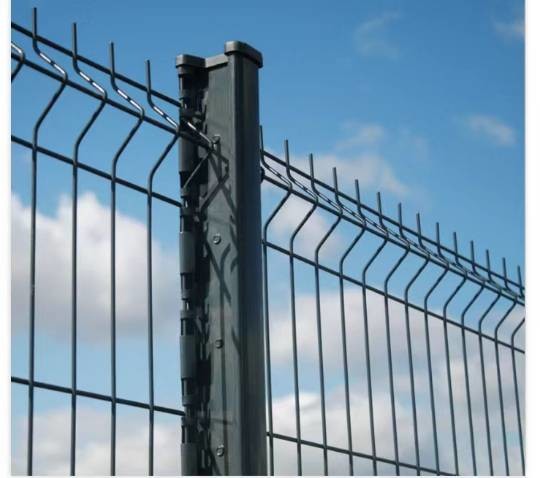

Curvy fence panel can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition, curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand.

SHS post is the most popular post for welded mesh fence. It includes welded mesh panels, steel post and the accessories. We use good quality low carbon steel wire or galvanized wire do the welding, then make several curves based on the height of the panels to make the panel rigid and strong. Normally there will be 3cm spike wire left at the top of the panels to make the fence jump over proof as well as good looking. For the surface treatment of the panels we use electrostatic spray or PVC dipped coating. For the post, we use galvanized then do electrostatic spray.

Features:
1.Easy and quick installation.
2.The dounlebeam has a high degree of resistance to impact and vandalism.
3.The powder coated can resit the ultraviolet radiation, for more weather resistant.
4.The coated layer is even, strong adhesiveness and bright luster with long live good anti-corrosive prosperity.

Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 0

Product details

Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 1

Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 2Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 3


Product Specification

1)Panel

  Mesh Wire Thickness Surface Treatment Panel Width Panel Height Fence Height

Big Panel







50x100mm
55x100mm











4.00mm
4.50mm
5.00mm











Gal.+PVC coated











2.50m
3.00m











2000mm 2700mm
2300mm 3200mm
2600mm 3700mm
530mm 2700mm

V panel



630mm 3200mm
730mm 3700mm

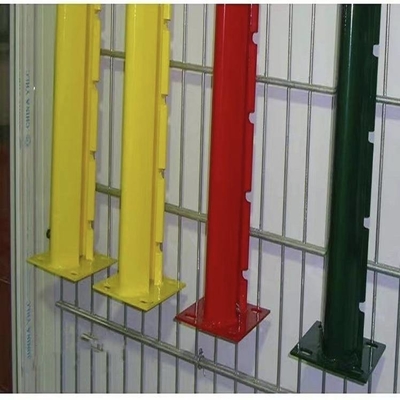

2)Y post

Profile Wall Thickness Surface Treatment Length Base Plate Rainhat
60x60mm 2.0mm
2.5mm
Gal.+PVC coated 2700mm I+530mm V Available
On request
Plastic or Metal
3100mm I+630mm V

3600mm I+730mm V





Fence application

1.Muticonstructions, such as properties, companies, gardens, house, etc.
2.Field,such as airoprt, playground, boundary, anti intruder.
3.Protection, such as highway, railway, bridge, etc.
4.Shipping Port Security fencing, Prison security fencing, etc.



Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 4

Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 5



Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 6



Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Galvanized electrostatic spray or PVC dipped coating SHS  post welded mesh fence 7
