Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 02
Minimum Order Quantity 50sets
Price usd18-usd26
Packaging Details Pallet
Delivery Time 20-60days
Payment Terms L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability 1000 Piece/sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Customed Size 6' High X 8' Wide Or Required Size
Hole Shape Square Height 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m
Material Low-Carbon Iron Wire, Galvanized Iron Wire Surface Treatment Galvanized 、Powder Coated Or PVC Coated
Width 2.0m Or 2.50m Or 2.9m Wire Diameter 3.0mm Or 3.5mm Or 4.0mm Or 4.50mm Or 5.00mm
Length 2.0m-2.5m Mesh 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm Etc.
High Light

50x100mm 3d curved wire mesh fence


3.0mm 3d curved wire mesh fence


square hole 3d welded wire fence

Leave a Message
Product Description


Product Description

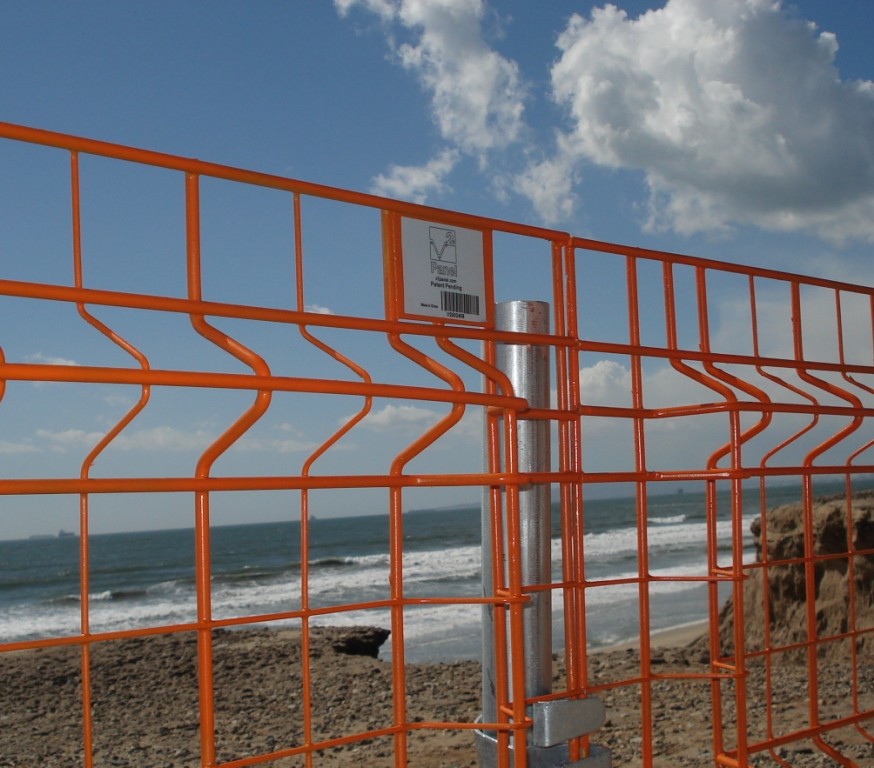

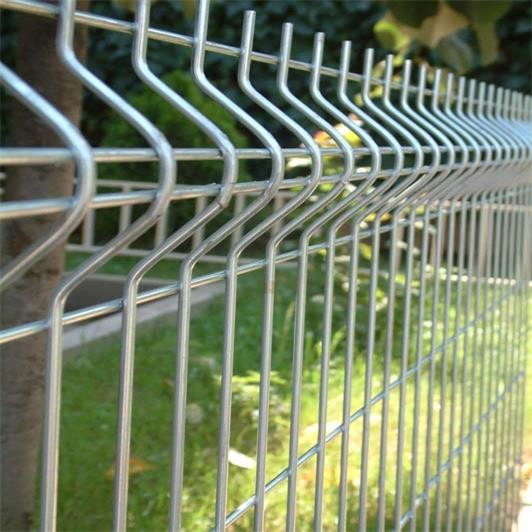

Curvy fence panels, also known as 3D fencing, Triangle bend fence ,is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.

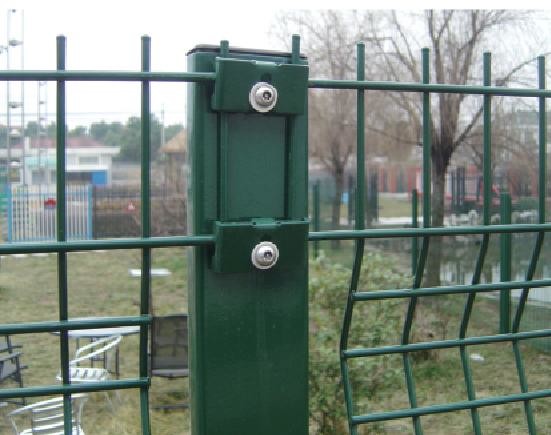

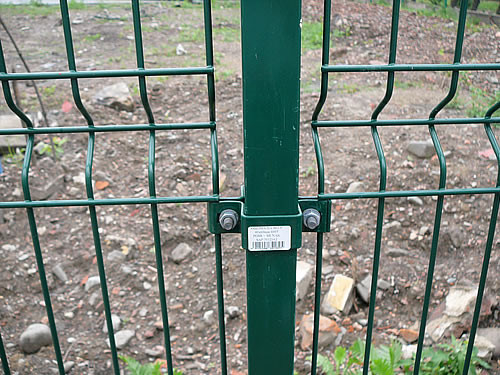

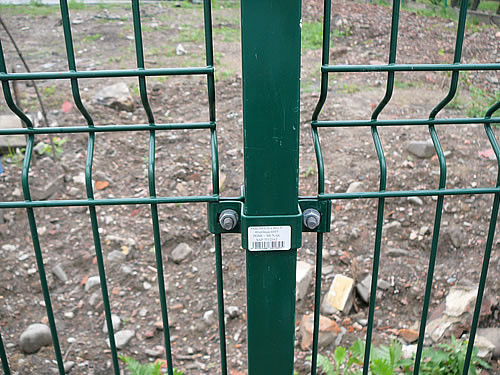

SHS post is the most popular post for welded mesh fence. It includes welded mesh panels, steel post and the accessories. We use good quality low carbon steel wire or galvanized wire do the welding, then make several curves based on the height of the panels to make the panel rigid and strong. Normally there will be 3cm spike wire left at the top of the panels to make the fence jump over proof as well as good looking. For the surface treatment of the panels we use electrostatic spray or PVC dipped coating. For the post, we use galvanized then do electrostatic spray.

Surface Treatment: The panels undergo surface treatment to improve their durability and appearance. Options for surface treatment include electrostatic spray or PVC dipped coating. This helps protect against corrosion and extends the life of the fence.

Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm 0


• Simple Installation
• Cost-Effective
• Attractive Appearance
• Various Color Options to Suit Different Environments
• Excellent Resistance to Rust and Corrosion
• Multiple Choices of Installation Clips: Metal or Plastic
Packaging and Shipping:

  1. Fence Panel: Protected with plastic film or wooden case, and secured with a metal/wooden pallet.
  2. Fence Post: Encased in a plastic bag and placed on a metal/wooden pallet, with a rainhat installed.
  3. Fence Accessories: Packed in a plastic bag and placed in a carton box, including clips and screws.

Product Specification

The fence panels are fully welded and 100% hot dip galvanized offering great strength, protection against corrosion and an increadibly long product life.

YUANMAI FENCING is a professional fence customizing factory with experience of more than 20 years. We provide high quality fence with affordable price, as well as provide trade assurance to ensure that your order be no risk.


Width : 2.50m, 2.75m, 3.0m
Height: 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m
Mesh: 50x200mm, 50x150mm, 50x100mm
Wire thickness: 4.0mm,4.5mm,5.0mm
Rigid V: 2, 3, 3, 4, 4, 4, 6
Nos. of brackets 2, 3, 3, 4, 4, 4, 6




Section : SHS
Section size: 50x50, 60x60mm
Height: According to the panel height
Wall thickness: 1.5/2.0/2.5 mm


Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm 1Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm 2



Fence application

1.Muticonstructions, such as properties, companies, gardens, house, etc.
2.Field,such as airoprt, playground, boundary, anti intruder.
3.Protection, such as highway, railway, bridge, etc.
4.Shipping Port Security fencing, Prison security fencing, etc.

Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm 3

Square Hole 50x100mm 3d Curved Wire Mesh Fence 3.0mm 4


Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
