Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 02
Minimum Order Quantity 50sets
Price usd18-usd26
Packaging Details Pallet
Delivery Time 20-60days
Payment Terms L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability 1000 Piece/sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customed Size 6' High X 8' Wide Or Required Size
Post 50x50mm 60x60mm Etc Height 1.2m; 1.5m; 1.8m; 2m; 2.2m; 2.5m Etc
Material Low-Carbon Iron Wire, Galvanized Iron Wire Surface Treatment Galvanized 、Powder Coated Or PVC Coated
Width 2.2 M 2.5 M Etc Wire Thickness 4.0mm,4.5mm,5.0mm
Length 2.0m-2.5m Mesh 50x200mm, 50x150mm, 50x100mm
High Light

galvanized 3d welded wire mesh fence

,

curved 3d welded wire mesh fence

,

pvc coated 3d wire mesh fence

Leave a Message
Product Description

CURVY WELDING MESH FENCING

Product Description

Curvy fence panel can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition, curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand.

Panels

Welded Wire Mesh Fence Panels have a width of 2500mm and heights ranging from 600mm to 2440mm. The Welded Mesh Fence Panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mmfor the beam sections. The heavy wires guarantee strength and rigidity.Different sizes can be made according to customer detailedrequirements.

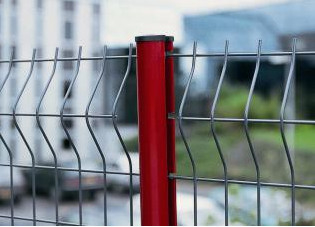

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 0Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 1

Posts
The Welded Mesh Fence Panels are attached with high strength steel posts. The common posts of the Welded Fence are SHS tube, RHS
tube, Peach post, Round pipe or Special-shaped post. Welded Mesh Fence Panels will be fixed to the post by suitable clips
according to different post type.

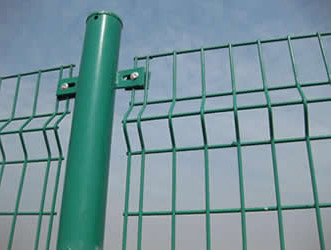

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 2Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 3


Gates
The Fence System includes the availability of swing, slide and cantilever gates.
Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 4

Features:
• Simple Installation
• Cost-Effective
• Attractive Appearance
• Various Color Options to Suit Different Environments
• Excellent Resistance to Rust and Corrosion
• Multiple Choices of Installation Clips: Metal or Plastic
Packaging and Shipping:

  1. Fence Panel: Protected with plastic film or wooden case, and secured with a metal/wooden pallet.
  2. Fence Post: Encased in a plastic bag and placed on a metal/wooden pallet, with a rainhat installed.
  3. Fence Accessories: Packed in a plastic bag and placed in a carton box, including clips and screws.

Product Specification

The fence panels are fully welded and 100% hot dip galvanized offering great strength, protection against corrosion and an increadibly long product life.

YUANMAI FENCING is a professional fence customizing factory with experience of more than 20 years. We provide high quality fence with affordable price, as well as provide trade assurance to ensure that your order be no risk.

Panel

Name
3D curvy fence
Usage
Farm/House/Land/Project/Jail/Warehouse/car parking/ school etc
Treatment
galvanized + pvc coatedgalvanized + powder coated
hot dipped galvanized after welding
Height
1.2m; 1.5m; 1.8m; 2m; 2.2m; 2.5m etc
Wide
2.2 m 2.5 m etc
Wire mesh
50mm X 180mm
Post
50x50mm 60x60mm etc
Color
black, green, blue etc

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 5Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 6

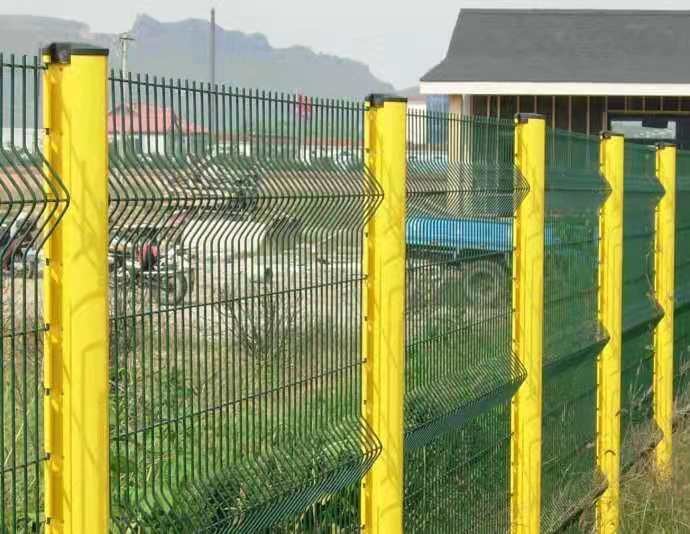

Fence application


1.Muticonstructions, such as properties, companies, gardens, house, etc.
2.Field,such as airoprt, playground, boundary, anti intruder.
3.Protection, such as highway, railway, bridge, etc.
4.Shipping Port Security fencing, Prison security fencing, etc.

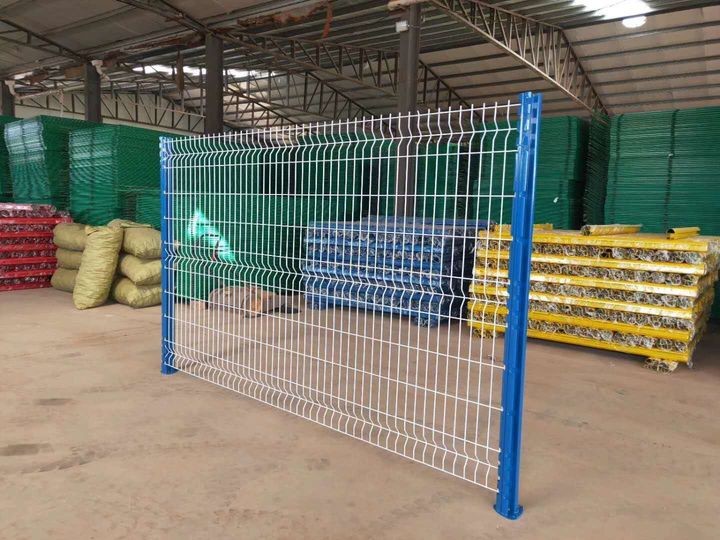

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 7

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 8



Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Pvc Coated Galvanized 3d Welded Wire Mesh Fence Curved 9
