3D Curvy hot dipped PVC coated welded wire mesh fence triangle 3D fence

Place of Origin china
Brand Name YM
Certification ISO-9001
Model Number YM-003
Minimum Order Quantity 50set
Price 10usd
Packaging Details pallet
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 3D Curvy PVC Coated Welded Wire Mesh Fence Triangle 3D Fence Wire Guage : 3mm, 4mm,4.5mm,5mm
Color Green Aperture 50 X 150mm, 50 X 200mm, 75 X 250mm
Advantage Anti-corrosion Application Freight Yards, Sport Fields, Airports
Specs : H X W: 800, 1,000, 1,200, 1,500, 1,600, 1,800, 2,000 X 3,000mm Name 3D Curvy PVC Coated Welded Wire Mesh Fence Triangle 3D Fence
Leave a Message
Product Description

Product Description

Details :

It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal profiles that forms a rigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials, then connected with post by suitable clips. Due to its simple structure, easy installation, nice appearance, more and more customers regard welded mesh fence as the preferred common protective fence.

Curvy Welded fence is a security and attractive fence with beautiful appearance, and it is ideal for residential area and entertainment venues.
Curvy welded fence can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped
curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel.

This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand. With stable, durable and flexible structure.



Welded Mesh Fence Feature:
1. The products are anti-corrosive, resisting to acid and alkali, aging-proof, beautiful and practical.
2. Special design style makes the fence more fashionable.
3. Once installed, it is difficult to knock down.
4. Many colors are available.
5. It is convenient to install, which save your time and cost.
6. Beautiful and practical.
7. It can last more than 10 years, during which time it wouldn't rust and lost print

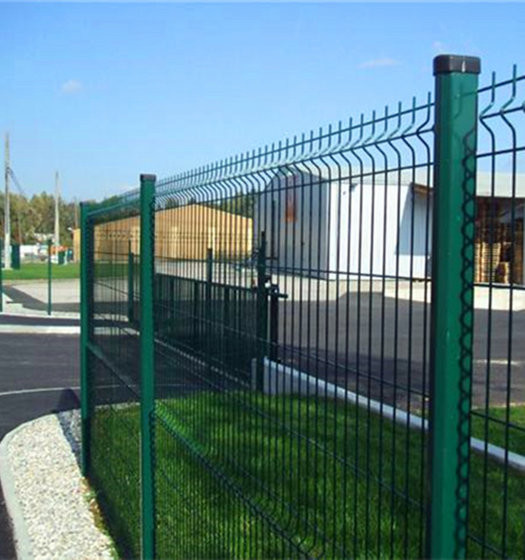

3D Curvy  hot dipped PVC coated welded wire mesh fence triangle 3D fence 0



Wire mesh fence
Welded mesh panel
Hole size
Wire diameter
Panel size
1.8mx3m,three or four bends
post size
wall thickness
Fence color
Dark green ,grass green ,red ,white ,black ,blue and yellow ect.
Customization accepted

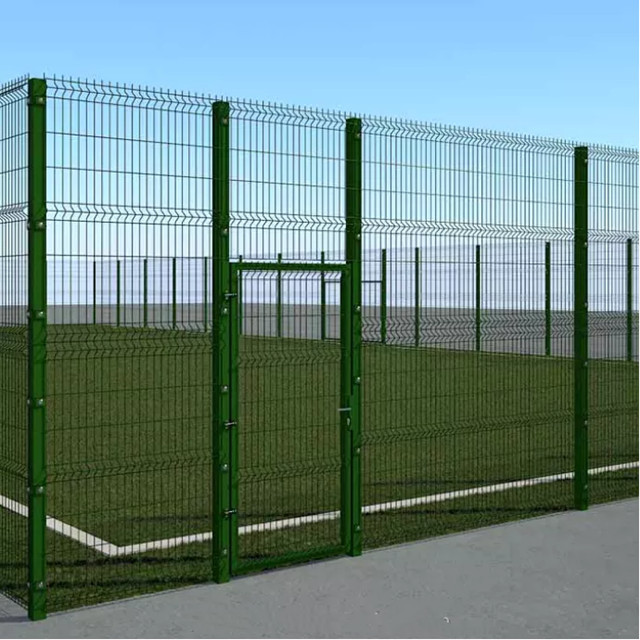

3D Curvy  hot dipped PVC coated welded wire mesh fence triangle 3D fence 1


1.Private properties and recreational sites
2.Sports facilities, pitches, tennis courts, playgrounds
3.Warehouses, logistics bases - military facilities and sites
4.Housing estates and parking lots
5.Industrial and commercial buildings
6.Public places




3D Curvy  hot dipped PVC coated welded wire mesh fence triangle 3D fence 2



Company profile

Hebei Yuanmai Metal Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Tailong also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China. Tailong supplies high quality fences and related products for a variety of applications. We are committed to providing customers with good quality products, competitive prices and excellent services. Our products are widely used in road, railway, airport, residence district, seaport, garden and other fields. Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK, Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.


3D Curvy  hot dipped PVC coated welded wire mesh fence triangle 3D fence 3
Curvy 3d 4.5mm Welded Wire Mesh Fencing Pvc Coated 4


Q: When can you get the reply?
A: Within 15 minutes after we get your inquiry.

Q: What you’re getting before any work starts?
A: We will provide a drawing with your quotation, so you can see what your new fencing will look like.

Q: Are you a real factory? Or a trading company?
A: We have both real factory and trading department, mainly produce and sell wire mesh products.

Q: How long is your delivery time?
A: Generally 5-10 days if the goods are in stock or 15-20 days if not in stock, and according to the quantity you buy.

Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.

Q: Can I add my logo on the product?
A: Yes. According to your request.

Q: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory. Shijiazhuang International Airport and Beijing International Airport are near to us and we can meet you here. Hotel booking service is available.
