Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm

Place of Origin Hebei
Brand Name Yuanmai
Certification ISO 9001
Model Number YM—05
Minimum Order Quantity 1000pcs
Price $27 -$68/ Piece
Packaging Details Wrapped with shrink film then packed in wood pallet or iron pallet
Delivery Time <20 work days
Payment Terms L/C, T/T
Supply Ability 1800 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3D Wire Mesh Fence Material Iron Wire
Surface Treatment Galvanized+PVC Coated Feature Easily Assembled,Waterproof,Eco Friendly,Rodent Proof,Rot Proof
Usage Garden Fence, Sport Fence, Farm Fence Wire Guage 2mm,2.5mm,3mm, 4mm,4.5mm,5mm
Color Green,yellow,black,according To Customer's Request Type Fencing
You can tick the products you need and communicate with us in the message board.
Mesh size Wire Diameter No.
50mm 1mm YM-051
50mm 1.2MM YM-052
50mm 1.5MM YM-053
50mm 1.8mm YM-054
50mm 2mm YM-055
50mm×200mm 0.6MM YM-056
50mm×200mm 0.8mm YM-057
50mm×200mm 1mm YM-058
50mm×200mm 1.2MM YM-059
50mm×200mm 1.5MM YM-060
50mm×200mm 1.8mm YM-061
50mm×200mm 2mm YM-062
Leave a Message
Mesh size Wire Diameter No.
Product Description
PRODUCT DESCRIPTION
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 0
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 1

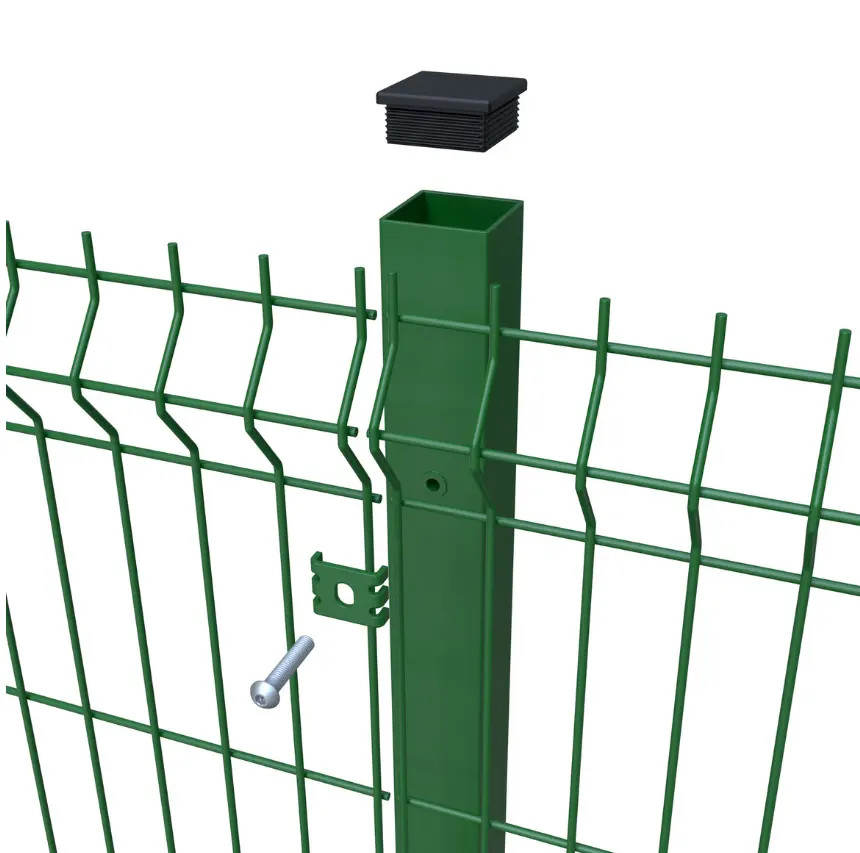

3D Curvy Welded Mesh Fence Panels are rectangular mesh panels. They are the most common Welded Panels all over the world since they are preferred as the most efficient solution for populated public and private areas. 3D Panels have a width of 2,50m and height from 0,63m to 2,43m but it can be also manufactured in different dimensions according to customer demand. So, you can get tailor made panel dimensions for your territory without compromising aesthetic view and security.
Mesh sizes of the welded panel are 55x200mm, 50x200mm and 50x150mm. These are the most commonly preferred dimensions by our customers. 3D Mesh is also manufactured from pre-galvanized wire just like the Security Welded Mesh. The wire diameters are often 4mm and 5mm. The panels have reinforcing V-bends to increase rigidity.
Application
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 2
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 3

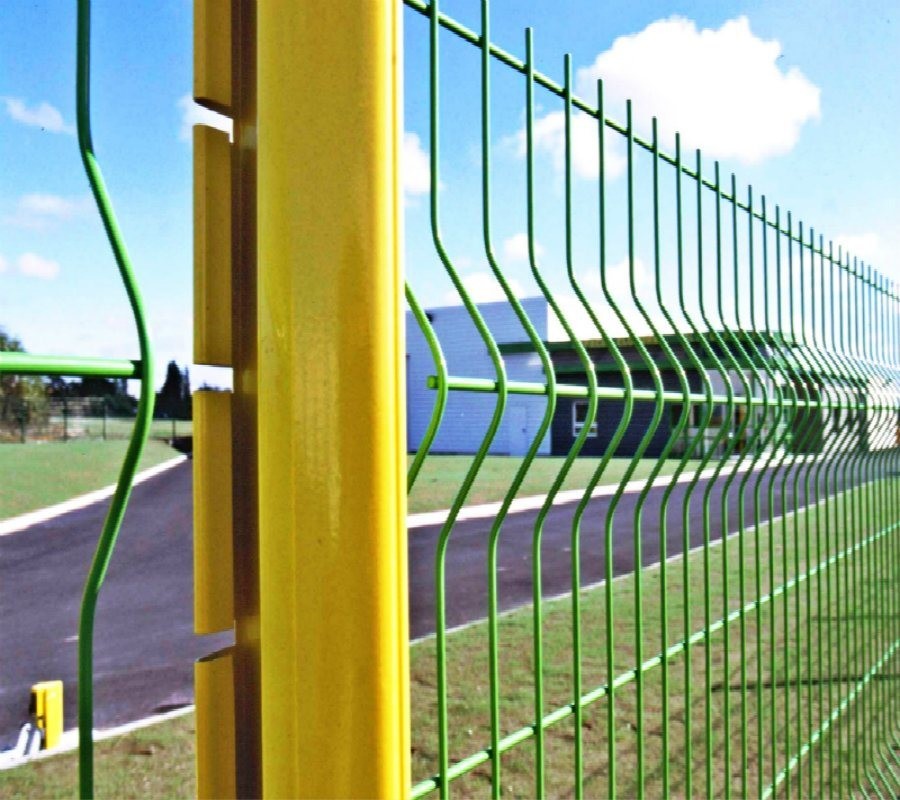

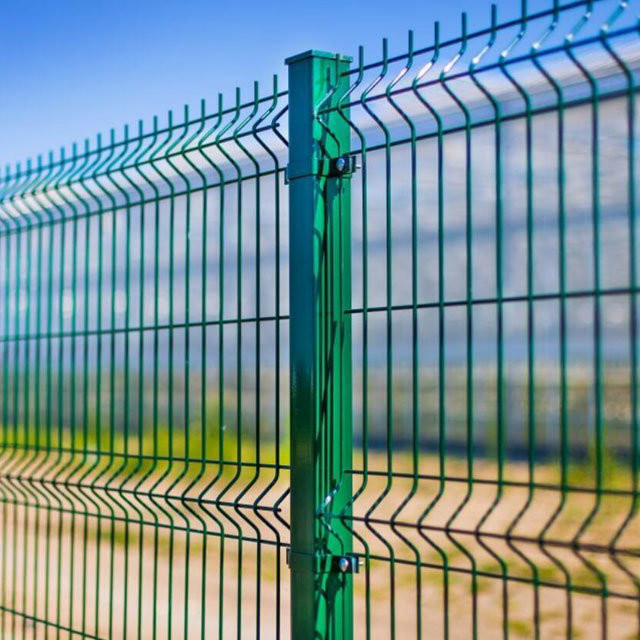

Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.
Feature
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 4

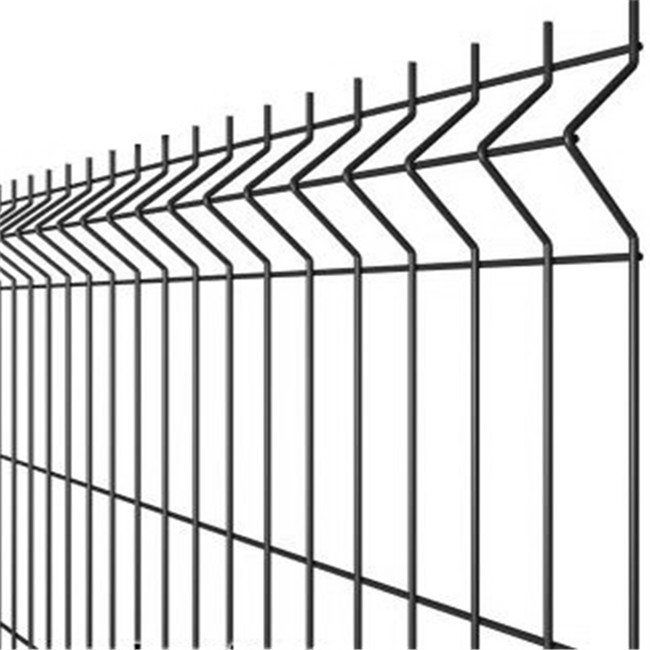

3D curvy fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Product Paramenters



Panel Height
Post Height
Panel Lenhth
Folds NO.
Wire Diameter
Mesh Size
630 mm
1100 mm



2m

2.5m

3m
2
Gal + Powder Coated
3.85mm/4.0mm 4.35mm/4.5mm
4.85mm/5.0mm 5.35mm/5.5mm

Gal + PVC Coated
3.0mm/4.0mm 3.5mm/4.5mm
4.0mm/5.0mm 4.5mm/5.5mm
5.0mm/6.0mm
Hot-dipped Gal
4mm 4.5mm 5mm 5.5mm 6mm



200X55mm
200x50mm
150x50mm
100x50mm
830 mm
1300 mm
2
1030 mm
1500 mm
2
1230 mm
1800 mm
2
1530mm
2000 mm
3
1830 mm
2300 mm
4
2030 mm
2500 mm
4
2530 mm
3000 mm
4



Triangular bending guardrail, unique embedded hook design, so that the column and Seine to form a solid whole. The product design has been awarded the French Industrial Design Award, and obtained a patent certificate.
Detail
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 5
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 6
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 7
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 8
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 9
Packing & Delivery

Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 10
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 11
Company Profile
Yuanmai Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Yuanmai also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China.
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 12
Galvanized Steel 3D Curved Security Welded Fence Panels 50x200mm 50x150mm 13
