4mm 4.5mm 5mm hot dipped galvanized green color 3d Welded Mesh Fencing

Place of Origin china
Brand Name TLWY
Certification ISO-9001
Model Number TL-001
Minimum Order Quantity 50set
Price 10usd
Packaging Details pallet
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized Steel Product Name 5mm 3d Welded Mesh Fencing
Wire Guage : 3mm, 4mm,4.5mm,5mm Color Green
Aperture 50 X 150mm, 50 X 200mm, 75 X 250mm Advantage Anti-corrosion
Application Freight Yards, Sport Fields, Airports Specs : H X W: 800, 1,000, 1,200, 1,500, 1,600, 1,800, 2,000 X 3,000mm
Name 4mm 4.5mm 5mm 3d Welded Mesh Fencing
Leave a Message
Product Description
Specification
Curvy Welded fence is a security and attractive fence with beautiful appearance, and it is ideal for residential area and entertainment venues.
Curvy welded fence can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand. With stable, durable and flexible structure.


Advantages:



1) Fence posts made with concrete pouring, with low cost.

2) High strength, good overall stability.

3) Color plastic coating/spraying layer has a good anti-corrosion and decorative effect.

4) The fence perimeter has a harmony and good outlook.



1. Cost Effective
the welded mesh panels provide competitive price levels whilst retaining high quality, rigidity and performance.
2. Long Life
Galvanized and PVC coated of corrosion resistance for long life and low maintenance and attractive appearance.
3. High Strength
the panels are welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the Dpanels a high strength.
4. Rapid Installation
All components attractive fence with the other components which achieves professional and high quality fencing, installed with maximum effectiveness.



Fence Panels
● Material: low carbon steel or galvanized steel wire.
● Surface Treatment:
■ Black steel wire & Hot dipped galvanized
■ Electro-galvanized wire & PVC coating
■ Hot dipped galvanized wire & powder coating
● Wire diameter: 3 mm, 4 mm, 5 mm, etc.
● Mesh opening: 50 × 200 mm, 75 × 200 mm, 50 × 150 mm, 50 × 100 mm, 75 × 150 mm, etc.
● Panel width: 2000 mm, 2200 mm, 2500 mm, 3000 mm.
● Panel height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1530 mm, 1730 mm, 2030 mm, 2430 mm.

Fence Post



● Material: high grade steel tube.
● Post type: square, round, peach.
● Post dimension:
■ Rectangular (mm): 40 × 60, 50 × 50, 60 × 60, 70 × 70, 80 × 80.
■ Round (mm): 38, 42, 48, 60.
■ Peach (mm): 50 × 70, 70 × 100.
● Color: same as panel.
● Accessories: Fence cap, clamps & screws are all available from us.



1.Road and Transit(Highway,Railway,Road,City Transit)

2.Science and Industry Zone(Factory,Industry Zone,Sightseeing Zone,New Pattern Farm)

3.Private Grounds(Courtyard,Villadom)

4.Public Grounds(Park,Zoo,Train or Bus Station,Lawn,playground)

5.Commercial Grounds(Corporation,Hotel,Supermarket)

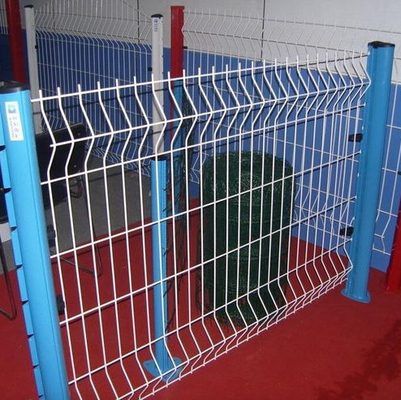

4mm 4.5mm 5mm  hot dipped galvanized green color 3d Welded Mesh Fencing 0

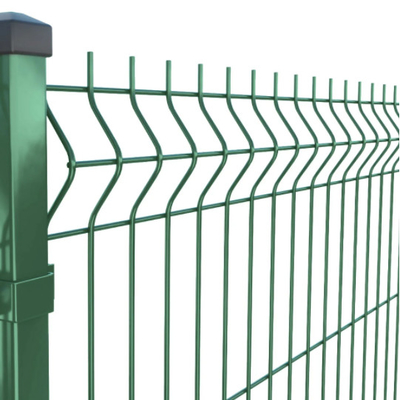

4mm 4.5mm 5mm  hot dipped galvanized green color 3d Welded Mesh Fencing 1    Parameter

   Parameter



Heavy duty galvanized Decorative 3D Curved Welded Wire Mesh Garden Fence
Mesh Opening
Wire Thickness
Panel Width
Panel Height
Number of Folds
Post Type


50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
etc.


3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm


2.0m
or
2.50m
or
2.9m
630mm
2
Round Post

48x1.5/2.0mm

60x1.5/2.0mm
Square Post(SHS)

50X50x1.5/2.0mm

60x60x1.5/2.0mm
80x80x1.5/2.0mm
Rectangular Post(RHS)

40x60x1.5/2.0mm

40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
830mm
2
1030mm
2
1230mm
2
1430mm
2
1530mm
3
1630mm
3
1730mm
3
1830mm
3
1930mm
3
2030mm
4
2230mm
4
2430mm
4
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated.
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required.

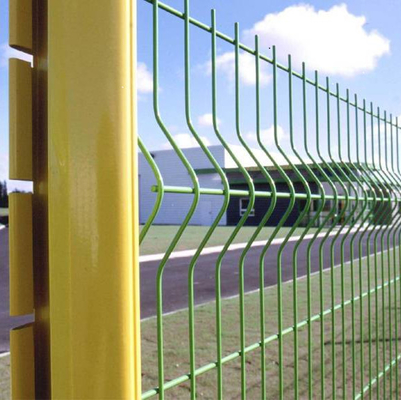

4mm 4.5mm 5mm  hot dipped galvanized green color 3d Welded Mesh Fencing 2

Application :


4mm 4.5mm 5mm  hot dipped galvanized green color 3d Welded Mesh Fencing 3
 Company profile                                                                                                                                                                                         Hebei Yuanmai Metal Products Co., Ltd.  is a professional manufacturer of wire mesh fence, located in Anping County, which is own 20000 square meters manufacturing facility workshop With over 100 workers the annual export quantity are around 500 units containers.Our products include chain link fence, farm fence, SNS protective mesh, framework fence, temporary fence, 358 High Security Fence, curvy welded mesh fence, prison fence, airport fence, ornamental fence, iron fence, palisade fence, double loop fence and euro fence. Tailong also supplies Hesco Bastion, reinforcing mesh, gabions, store cages and decorative wire mesh
4mm 4.5mm 5mm  hot dipped galvanized green color 3d Welded Mesh Fencing 4
