hot dipped galvanized fence panel temporary crowd control barrier

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 07
Minimum Order Quantity 50sets
Price usd8-usd15
Packaging Details pallet
Delivery Time 20-60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MOQ 50 Sets Material Hot Dipped Galvanized, Stainless Steel
Frame Pipe 1.5-2.0mm Infilled Pipe Size 14, 16, 19, 25
Thickness Of Pipe 1.2 , 1.5 , 1.8 , 2.0mm Opening 50*100,60*120,100*300mm
Surface Treatmen Electric Galvanized Then PVC Coated Width 2.0m, 2.1m, 2.4m, 2.5m
Length 1.1m,1.2m Height 0.8m-5m And Customized
Leave a Message
Product Description
Product Description
Crowd control barriers are fence panels that have been hot-dipped galvanized. They are commonly used by police and in public places to control crowds. There are two types of feet available for the barriers: welded feet and bolted feet. Welded feet come in various alternatives, such as flat feet, bridge feet, and bend feet. Bolted feet can be equipped with flat feet or bridge feet. Customized advertising boards can also be added to the barriers based on the client's requirements.
Material: Carbon steel pipes Q235, Hot-dip Galvanized
Surface treatment: Hot dipped galvanized after welding Or Powder coating
Specifications: 1. Panels sizes: 1.1m high,2.1m wide
2.Frame pipes: O.D20mm,25mm(popular),32mm,40mm,42mm,48mm
3.Infill pipes: O.D14mm,16mm,20mm(popular),25mm
4.Thickness of pipe: 1.0mm. 1.2mm, 1.5mmm, 2.0mm
5.Spacing: 60mm,100mm,190mm(popular)200mm
6.With flat metal feet(600x60x6mm)
Features: 1.Fully hot-dipped galvanized after welded,zinc coating is more than 70 microns.
2.More weather resistant and durable, and it can last more than 10 years.
3.The barriers are light and easy to handle, while being strong and robust at the same time.
4.The feet are removable which makes transportation and storage much easier and more efficient.
Applications: Crowd control barriers are the ideal solution to many pedestrian control needs. The barrier can ensure the safety of the public, keeping good order.

hot dipped galvanized fence panel temporary crowd control barrier 0

Product Specification

Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded
*Feet:Flat feet, Bridge feet and Tube feet

Material: carbon steel pipes
Process: Made through pipe welding then galvanized or powder coated
Application:

public events, exhibitions, festive parties, sporting events, concerts,

construction sites and concerts etc public restriction area

Product Features:

Corrosion resistant, age resistant, sunshine proof, weather proof, easy

installation and move

Corrosion Form:

Hot dipped galvanized

Powder coating

Specification

Frame

(O.D)

Infill picket

(O.D)

Panel width Panel height Pipe Spacing Feet stype

20mm

25mm

32mm

40mm

42mm

48mm





12mm

14mm

16mm

20mm

25mm



2.0m

2.1m

2.2m

2.4m

2.5m

1.1m

1.2m

1.5m

60mm

100mm

120mm

150mm

190mm

200mm

Flat feet

Bridge feet

Arched feet





Panel - welded foot

Width : 2.0m, 2.1m, 2.4m, 2.5m
Height: 1.1m
Frame pipe size: 25, 32, 38, 42
Infilled pipe size: 14, 16, 19, 25
Wall thickness: Frame pipe: 1.5-2.0mm
  Infilled pipe: 0.9-1.5mm
Detail Images

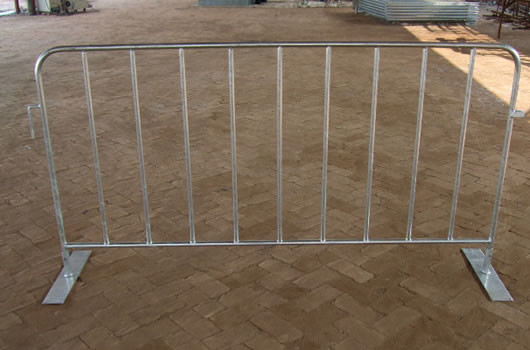

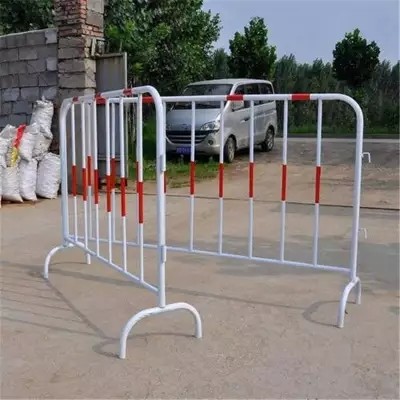

hot dipped galvanized fence panel temporary crowd control barrier 1
hot dipped galvanized fence panel temporary crowd control barrier 2
hot dipped galvanized fence panel temporary crowd control barrier 3



Fence application



Application: sports stadium, business and industry, factories and workshops, public buildings, construction places, swimming pools

hot dipped galvanized fence panel temporary crowd control barrier 4

Packing and Delivery



hot dipped galvanized fence panel temporary crowd control barrier 5



Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

hot dipped galvanized fence panel temporary crowd control barrier 6
