hot dipped galvanized fence panel temporary crowd control barrier
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | YMWY |
| Certification | ISO9001 |
| Model Number | 07 |
| Minimum Order Quantity | 50sets |
| Price | usd8-usd15 |
| Packaging Details | pallet |
| Delivery Time | 20-60 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2000 per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Crowd Control Barrier | Material | Hot Dipped Galvanized, Stainless Steel |
|---|---|---|---|
| Frame Pipe | 1.5-2.0mm | Infilled Pipe Size | 14, 16, 19, 25 |
| Thickness Of Pipe | 1.2 , 1.5 , 1.8 , 2.0mm | Opening | 50*100,60*120,100*300mm |
| Surface Treatmen | Electric Galvanized Then PVC Coated | Width | 2.0m, 2.1m, 2.4m, 2.5m |
| Length | 1.1m，1.2m | Height | 0.8-2.0m Customized |
Product Description
Product Description
Crowd control barriers are fencing panels that have been hot-dipped galvanized, commonly used in public places and by law enforcement to manage crowds. Two types of feet are available for these barriers: welded and bolted. Welded feet come in various alternatives like flat, bridge, and bend feet, while bolted feet can be equipped with flat or bridge feet. The barriers can also be customized with advertising boards based on the client's requirements.
Notable features of these barriers include their quick and easy installation and removal, cost-effectiveness, recyclability, and various color options to match the environment in which they will be used.
Product Specification
Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded
*Feet:Flat feet, Bridge feet and Tube feet
| Material: | carbon steel pipes | ||||
| Process: | Made through pipe welding then galvanized or powder coated | ||||
| Application: |
public events, exhibitions, festive parties, sporting events, concerts, construction sites and concerts etc public restriction area |
||||
| Product Features: |
Corrosion resistant, age resistant, sunshine proof, weather proof, easy installation and move |
||||
| Corrosion Form: |
Hot dipped galvanized Powder coating |
||||
| Specification | |||||
|
Frame (O.D) |
Infill picket (O.D) |
Panel width | Panel height | Pipe Spacing | Feet stype |
|
20mm 25mm 32mm 40mm 42mm 48mm
|
12mm 14mm 16mm 20mm 25mm
|
2.0m 2.1m 2.2m 2.4m 2.5m |
1.1m 1.2m 1.5m |
60mm 100mm 120mm 150mm 190mm 200mm |
Flat feet Bridge feet Arched feet
|
Panel - welded foot
| Width : | 2.0m, 2.1m, 2.4m, 2.5m |
| Height: | 1.1m |
| Frame pipe size: | 25, 32, 38, 42 |
| Infilled pipe size: | 14, 16, 19, 25 |
| Wall thickness: | Frame pipe: 1.5-2.0mm |
| Infilled pipe: 0.9-1.5mm |

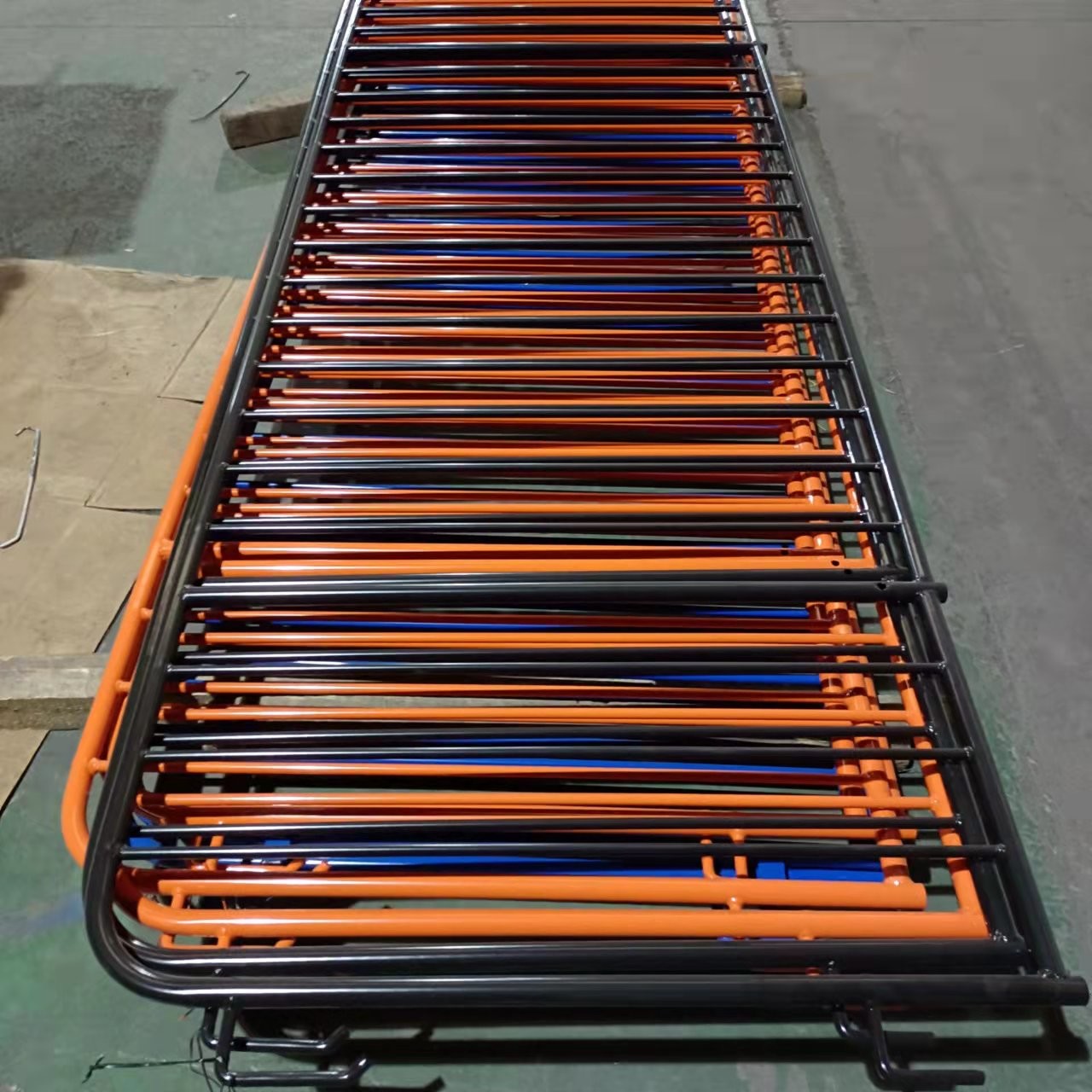

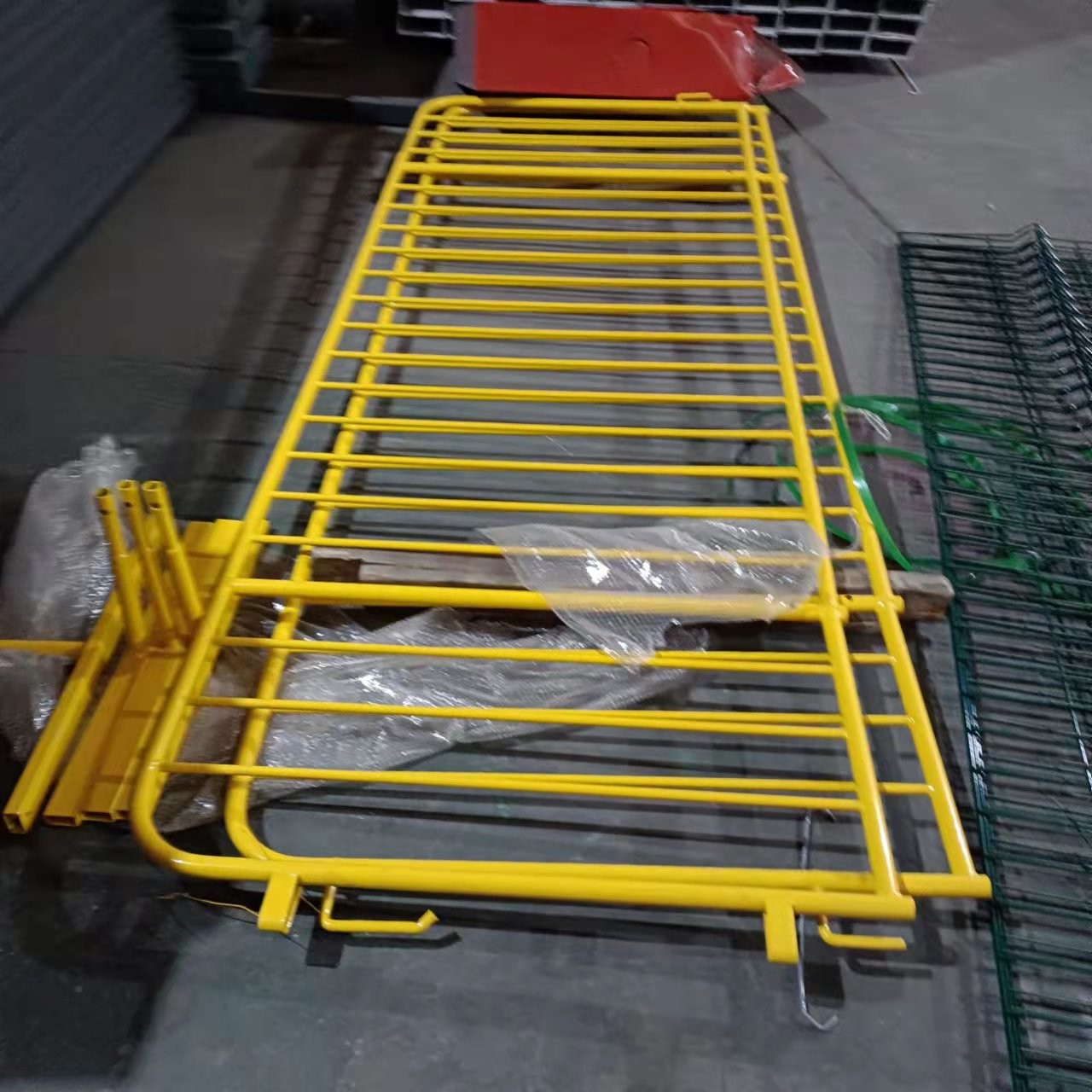

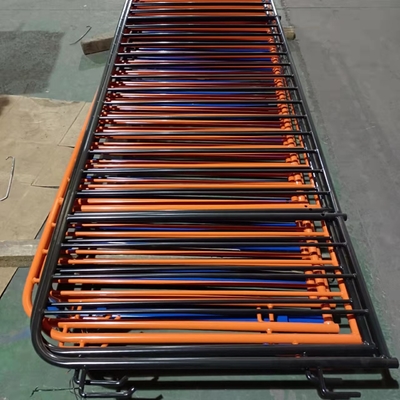

Detail Images

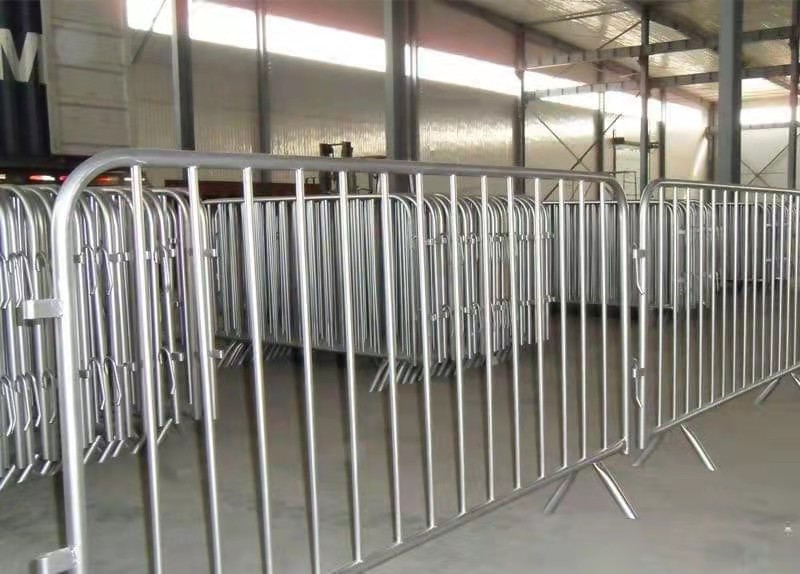

Fence application
Application: sports stadium, business and industry, factories and workshops, public buildings, construction places, swimming pools

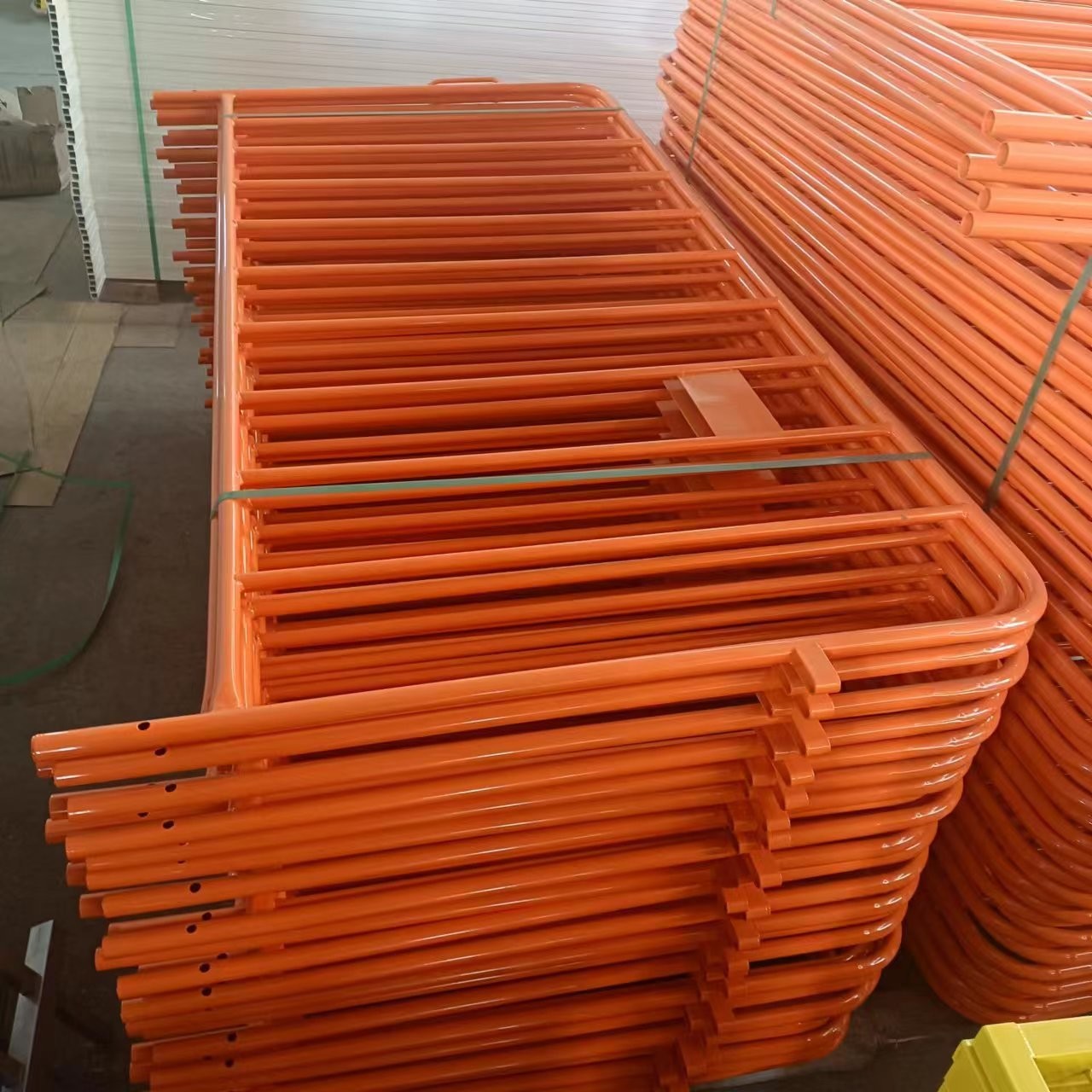

Packing and Delivery
Company profile
Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
