Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 07
Minimum Order Quantity 50sets
Price usd8-usd15
Packaging Details pallet
Delivery Time 20-60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Crowd Control Barrier Material Hot Dipped Galvanized, Stainless Steel
Fence Size 1800x2500mm,1800x3000mm,2200x3000 Etc Frame&Middle Pipe 30*30,25*25,20*20mm
Thickness Of Pipe 1.2 , 1.5 , 1.8 , 2.0mm Opening 50*100,60*120,100*300mm
Surface Treatmen Electric Galvanized Then PVC Coated Color Customed
Length 1.5-3m Customized Height 0.8-2.0m Customized
Leave a Message
Product Description
Product Description
Crowd Control Barriers Fence

There are three types of feet of our fence.
Guardrail Barricades come complete with toe boards and Flat Bar style footing with optional tabs for tacking them in place. They have become quite an item as an Oil Platform Barricade. Shipbuilders favor this as a Perimeter Barricade and a safety item rather than a cable line stretched from end to end. The toe boards on the bottom also add weight and keep the tools on deck, instead of in the water. Dock Barriers can also have punched holes in the bars for bolting to wood or concrete.

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 0

Product Specification

Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded
*Feet:Flat feet, Bridge feet and Tube feet

Material: carbon steel pipes
Process: Made through pipe welding then galvanized or powder coated
Application:

public events, exhibitions, festive parties, sporting events, concerts,

construction sites and concerts etc public restriction area

Product Features:

Corrosion resistant, age resistant, sunshine proof, weather proof, easy

installation and move

Corrosion Form:

Hot dipped galvanized

Powder coating

Specification

Frame

(O.D)

Infill picket

(O.D)

Panel width Panel height Pipe Spacing Feet stype

20mm

25mm

32mm

40mm

42mm

48mm





12mm

14mm

16mm

20mm

25mm



2.0m

2.1m

2.2m

2.4m

2.5m

1.1m

1.2m

1.5m

60mm

100mm

120mm

150mm

190mm

200mm

Flat feet

Bridge feet

Arched feet



Detail Images

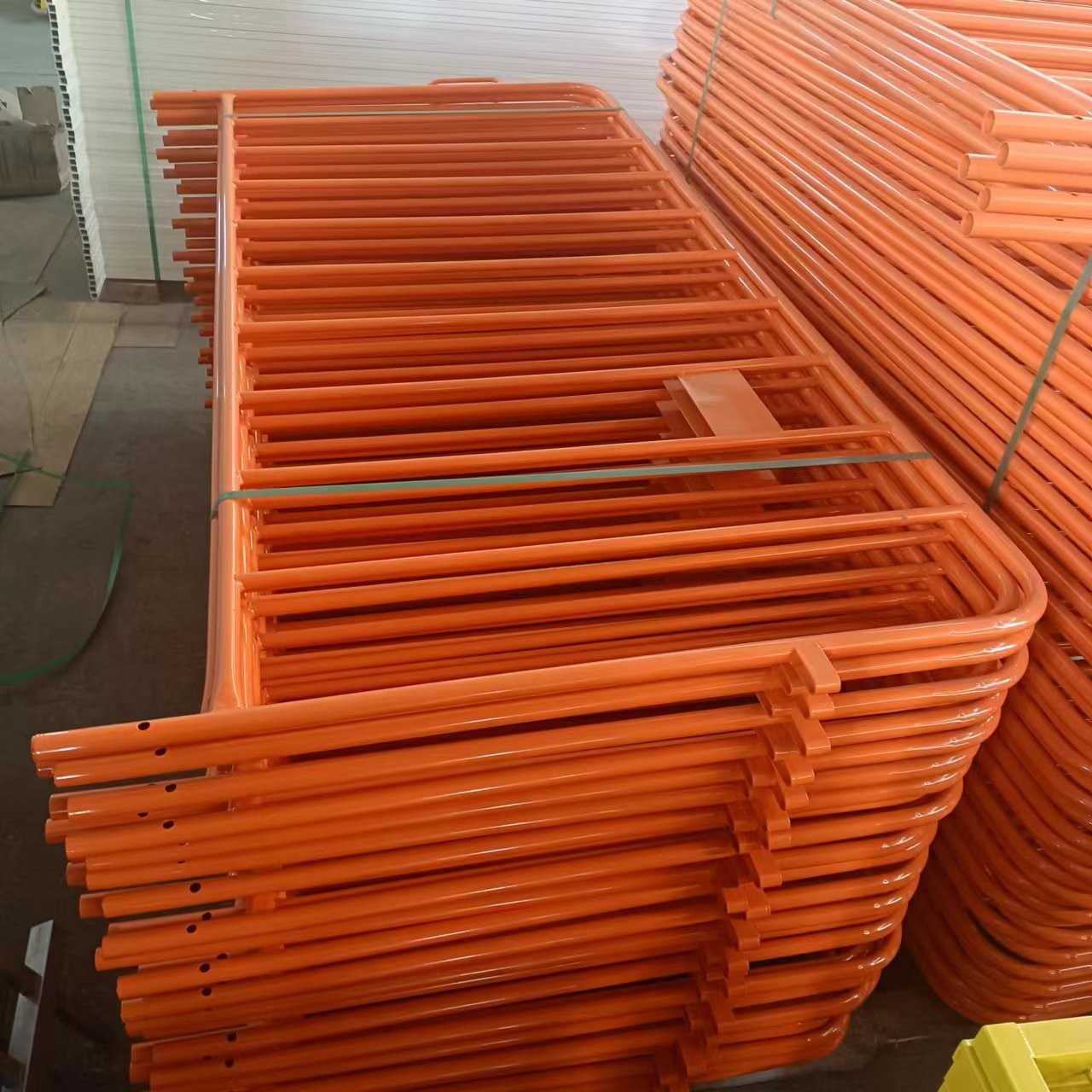

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 1

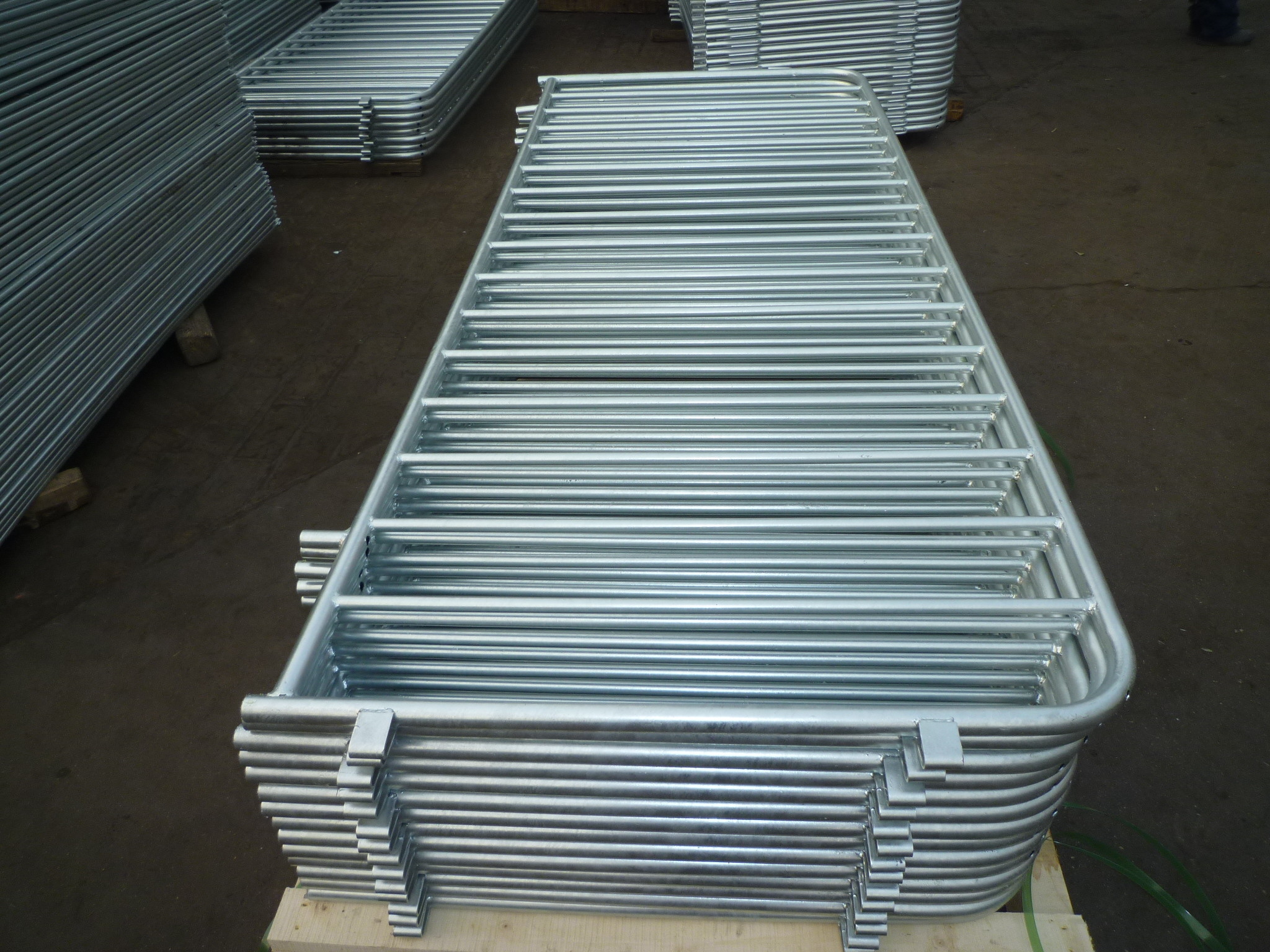

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 2

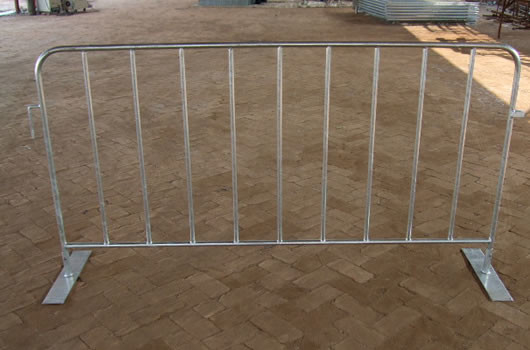

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 3



Fence application

Temporary fence panel is an alternative to its permanent counterpart when a fence is required on an interim basis when needed for storage, public safety or security, crowd control, or theft deterrence.

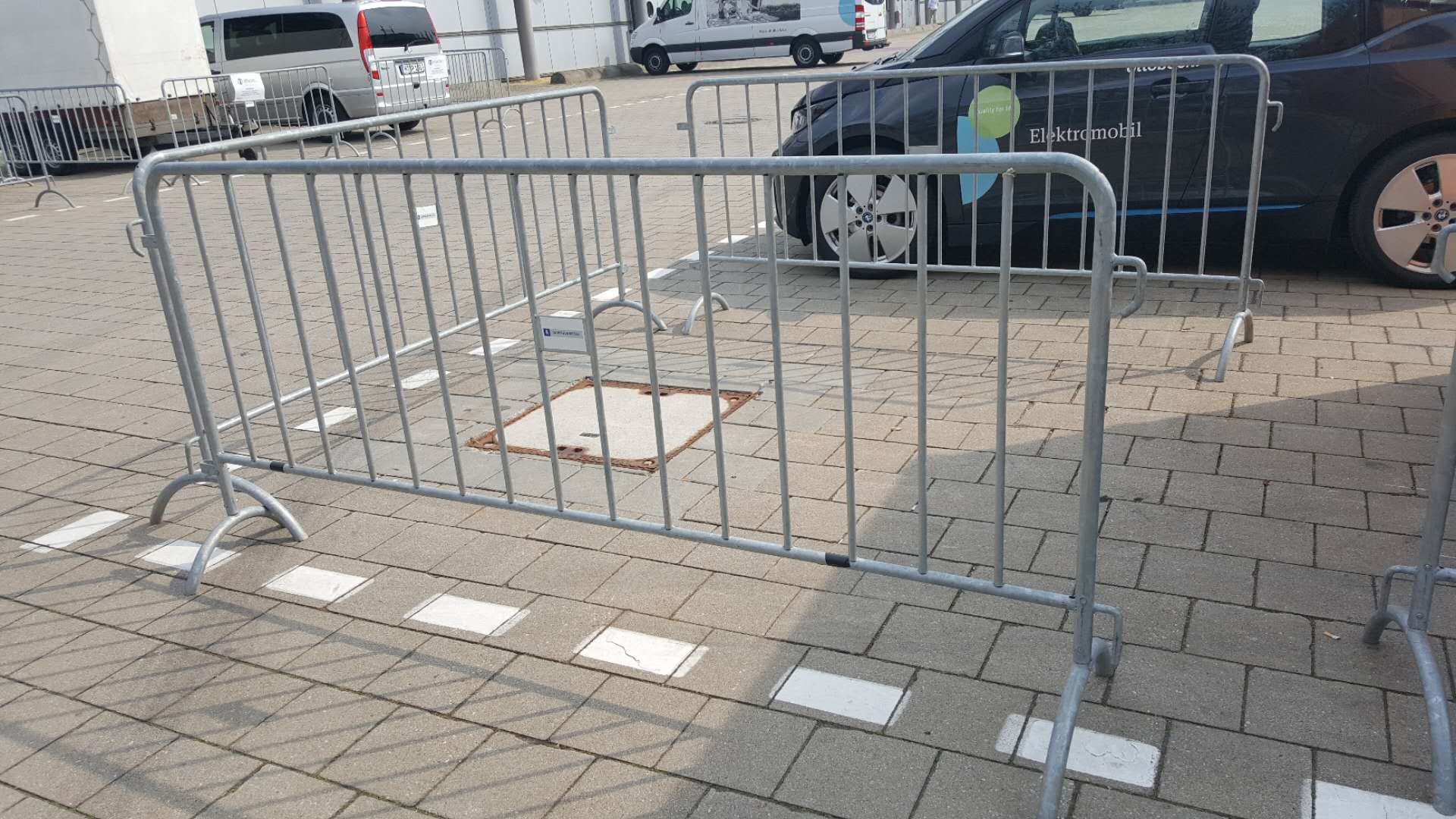

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 4

Packing and Delivery



Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 5



Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Temporary crowd control barrier, galvanized Pedestrian Barriers, french barricade 6
