Customized heavy duty palisade fence panels W type head top palisade fencing

  • Customized heavy duty palisade fence panels W type head top palisade fencing
  • Customized heavy duty palisade fence panels W type head top palisade fencing
  • Customized heavy duty palisade fence panels W type head top palisade fencing
  • Customized heavy duty palisade fence panels W type head top palisade fencing
  • Customized heavy duty palisade fence panels W type head top palisade fencing
Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 03
Minimum Order Quantity 50sets
Price usd18-usd50
Packaging Details pallet
Delivery Time 20-60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Palisade Fence Frame Material Metal
Frame Finishing Galvanized Or PVC Coated Pale Thickness 2.0mm, 2.5mm, 3.0mm
Angle Rail 50x50x5.0mm, 50x50x6.0mm Fence Height 1.2m-3m
Fence Width 2.75m (17 Pales) W Pale Width 62mm, 68mm, 72mm
W Pale Thickness 2-4mm Post 100x55mm 120x74mm 80x80x3.0mm
Leave a Message
Product Description

Product Description

Palisade fence is one kind of most popular choice for the area that requiring a higher level of security and vandal resistance, It is widely used in the whole world. The fence is normally include pales, horizontal rails, Post and then installed together with fish plate and security screws. The finish we always do are Hot dipped galvanized and Polyester powder coated. This is the D section pale for palisade fence. By now, we have shipped the palisade fence to Europe, Middle east, Africa as well as Australia.

One of the benefits of palisade fence is its visual deterrent effect. The pointed stakes create a clear boundary that sends a message to potential intruders that the property is protected and secure. In addition, palisade fences are difficult to climb over and can be used in a variety of settings, including residential, commercial, and industrial properties.

Features:
• Easy installation
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top

Applications: electricity providers and regional networks, water industry, telecom industry, police and law enforcement, railway line/track protection, motorways and highway protection, schools, colleges and universities, research laboratories

Galvanized Steel W Pale Security Palisade Fence Wrought Iron 1.8m
Product details

Palisade fence pale type

The palisade fence pale can be divided into corrugated pale and angle pale. The corrugated pale has W type and D type with different structure surface.

  • D section pales. Working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.
  • W section pales. with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
  • Angle steel pales. Bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.

The common types of palisade fence are W pale and D pale type palisade fencing with three point on the top of the fence. Though the price of the two type is same, but the W pale type palisade fencing is more widely used type than the D pale type, additional, it is more beautiful. So we suggested our customer to choose the W pale type.

Galvanized Steel W Pale Security Palisade Fence Wrought Iron 1.8m

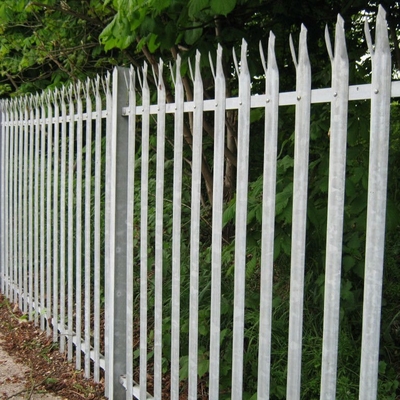

Customized heavy duty palisade fence panels W type head top palisade fencing 2

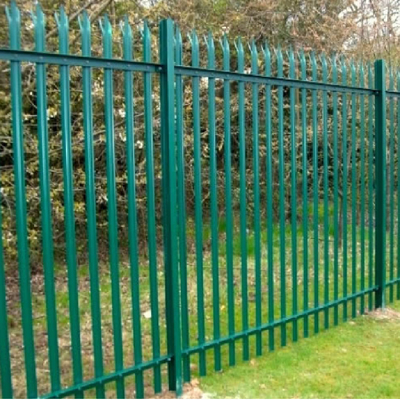

Customized heavy duty palisade fence panels W type head top palisade fencing 3



Product specification



Technical for straight type:

Panel & post

Pale type: W
Pale size: 68mm
Pale thickness: 2.0mm, 2.5mm, 3.0mm
Height: 1800, 2100, 2400, 3000mm
Width: 2750mm
Angle rail: L50x50x5.0mm, L50x50x6.0mm
Post: IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0
Pale section: Triple point, single point, round point
Finish: HDG+PP, PRE-HDG+PP, HDG

Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire

Packing and shipping

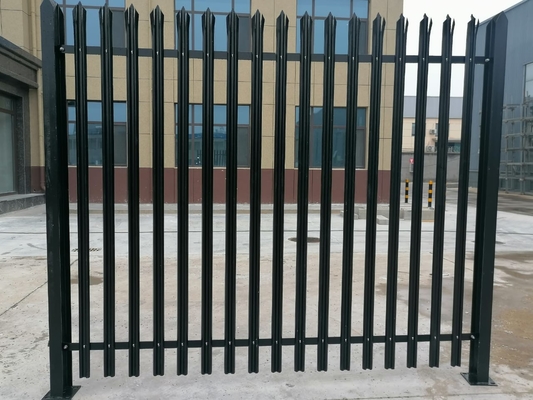

Customized heavy duty palisade fence panels W type head top palisade fencing 4



Company profile



Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
