Customized heavy duty palisade fence panels D straight type palisade fencing

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Palisade Fence | Frame Material | Metal |
---|---|---|---|
Frame Finishing | Powder Coated Or Galvanized | Pale Thickness | 2.0mm, 2.5mm, 3.0mm |
Angle Rail | L50x50x5.0mm, L50x50x6.0mm | Fence Height | 1.2m-3m |
Fence Width | 2.75m (17 Pales) | W Pale Width | 62mm, 68mm, 72mm |
W Pale Thickness | 2-4mm | Post | IPE100x55mm IPE120x74mm SHS80x80x3.0mm |
Product Description
Palisade fences are a popular choice for areas that require high levels of security and vandal resistance. They are widely used around the world and consist of pales, horizontal rails, and posts, which are installed using fish plates and security screws. The fence is typically finished with hot-dipped galvanization and polyester powder coating. The D section pale is a common type of palisade fence.
Some of the features of palisade fences include easy installation, a higher cost compared to other fence types, an attractive appearance, and different color options to match the environment. Palisade fences also have strong anti-rust and anti-corrosion abilities, and can be used to provide strong and high-security barriers. Concertina razor wire can be added to the top of the fence for additional security measures. Palisade fences have been shipped to numerous locations, including Europe, the Middle East, Africa, and Australia.
Features:
• Easy installation
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top

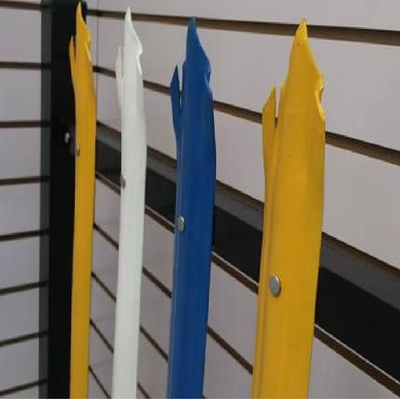

Palisade fence pale type
The palisade fence pale can be divided into corrugated pale and angle pale. The corrugated pale has W type and D type with different structure surface.
- D section pales. Working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.
- W section pales. with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
- Angle steel pales. Bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.
The common types of palisade fence are W pale and D pale type palisade fencing with three point on the top of the fence. Though the price of the two type is same, but the W pale type palisade fencing is more widely used type than the D pale type, additional, it is more beautiful. So we suggested our customer to choose the W pale type.
Product specification
Technical for straight type:
Panel & post
Pale type: | D |
Pale size: | 68mm |
Pale thickness: | 2.0mm, 2.5mm, 3.0mm |
Height: | 1800, 2100, 2400, 3000mm |
Width: | 2750mm |
Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |
Pale section: | Triple point, single point, round point |
Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing and shipping
Company profile
Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
