Customized heavy duty palisade fence panels curved top palisade fencing

  • Customized heavy duty palisade fence panels curved top palisade fencing
  • Customized heavy duty palisade fence panels curved top palisade fencing
  • Customized heavy duty palisade fence panels curved top palisade fencing
  • Customized heavy duty palisade fence panels curved top palisade fencing
  • Customized heavy duty palisade fence panels curved top palisade fencing
Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 03
Minimum Order Quantity 50sets
Price usd18-usd50
Packaging Details pallet
Delivery Time 20-60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Palisade Fence Frame Material Metal
Frame Finishing Powder Coated Or Galvanized Feature Easily Assembled, ECO FRIENDLY, Rodent Proof
Usage Garden Fence, Highway Fence, Yard Fence Fence Height 1.2m-3m
Fence Width 2.75m (17 Pales) W Pale Width 62mm, 68mm, 72mm
W Pale Thickness 2-4mm Post IPE100x55mm IPE120x74mm SHS80x80x3.0mm
Leave a Message
Product Description

Product Description

Palisade Fence

Steel Palisade Fencing, also known as European Style Fencing. In some countries people may not familiar with this type of fencing system, but many countries have already been using it to replace the traditional brick walls and heavy wire mesh fence, making the living environment beautiful, comfortable and fresh. “Palisade” is also called “Security Defense assembled pales”, it comes into people’s life because the pursuit of a better environment.

It is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.

The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.
tower Palisade fence normally includes two types of pales, "W" profile, "D" profile .

Galvanized Steel W Pale Security Palisade Fence Wrought Iron 1.8m
Product details

Palisade fence pale type

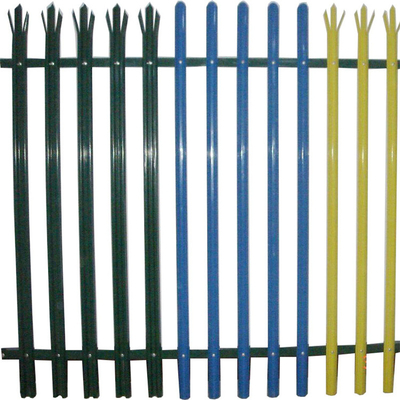

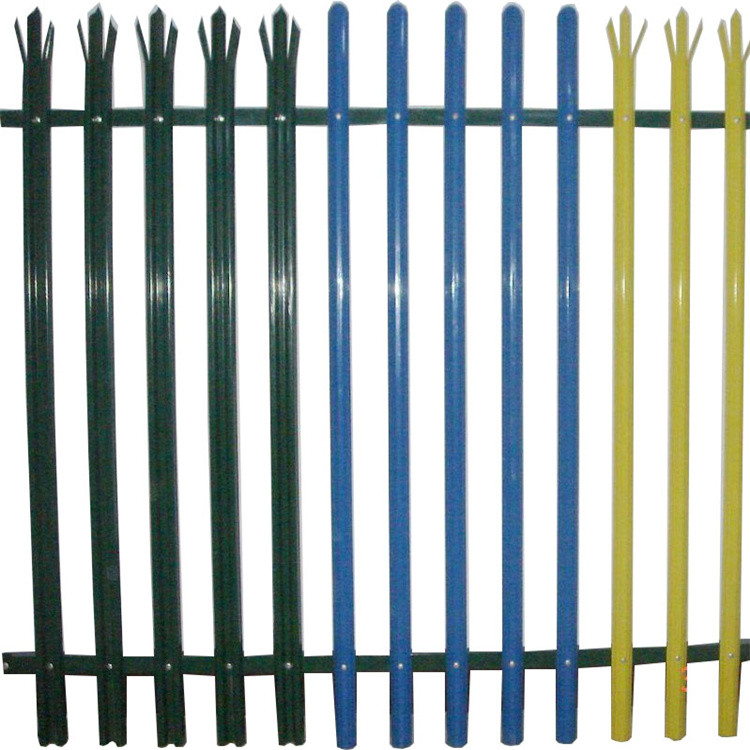

The palisade fence pale can be divided into corrugated pale and angle pale. The corrugated pale has W type and D type with different structure surface.

  • D section pales. Working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.
  • W section pales. with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
  • Angle steel pales. Bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.

The common types of palisade fence are W pale and D pale type palisade fencing with three point on the top of the fence. Though the price of the two type is same, but the W pale type palisade fencing is more widely used type than the D pale type, additional, it is more beautiful. So we suggested our customer to choose the W pale type.

Galvanized Steel W Pale Security Palisade Fence Wrought Iron 1.8m

Customized heavy duty palisade fence panels curved top palisade fencing 2

Customized heavy duty palisade fence panels curved top palisade fencing 3



Product specification



Specification Of Palisade Fence
Panel size W section Pale:70mm Angel Rail Post
Height Width Pale Thickness Qty:Pale Cross Rails Square post I Post
1.8m 2.75m 2/2.5/3mm 17pcs 40×40×4mm 60*60mm 100×55mm
2.1m 2.75m 2/2.5/3mm 17pcs 50×50×6mm 80*80mm
2.4m 2.75m 2/2.5/3mm 17pcs   100*100mm
3.0m 2.75m 2/2.5/3/3.5mm 17pcs
W section Pale:62mm
1.8m 2.75m 1.5/2/2.5mm 17pcs 40×40×4mm 60*60mm 100×55mm
2.1m 2.75m 1.5/2/2.5mm 17pcs 50×50×6mm 80*80mm
2.4m 2.75m 1.5/2/2.5mm 17pcs   100*100mm
3.0m 2.75m 1.5/2/2.5mm 17pcs
D Pale section:65mm
1.8m 2.75m 1.5/2/2.5/3mm 17pcs 40×40×4mm 60×60mm 100×55mm
2.1m 2.75m 1.5/2/2.5/3mm 17pcs 50×50×5mm 80x80mm
2.4m 2.75m 1.5/2/2.5/3mm 17pcs   100x100mm
3.0m 2.75m 1.5/2/2.5/3mm 17pcs
Surface treatment: Galvanized or galvanized then powder coating finished
Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.



Packing and shipping

Customized heavy duty palisade fence panels curved top palisade fencing 4



Company profile



Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Customized heavy duty palisade fence panels curved top palisade fencing 5
