Stone Cage Gabion Baskets Retaining Wall High Coating steel welded mesh geotextile thickness

Place of Origin Hebei
Brand Name Yuanmai
Certification ISO 9001
Model Number YM—01
Minimum Order Quantity 1000pcs
Price $27 -$68/ Piece
Packaging Details Wrapped with shrink film then packed in wood pallet or iron pallet
Delivery Time <20 work days
Payment Terms L/C, T/T
Supply Ability 1800 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Palisade Fence Feature Easily Assembled,Waterproof,Eco Friendly,Rodent Proof,Rot Proof
Material Steel,Iron,Aluminum Usage Garden Decoration,Home Decration,Back Yard Fence,Protection
Finishing Powder Coated,PVC Coated,Hot Dip Galvanized,hot Dipped Galvanized,Heavy Duty Galvanized Color According To Customer's Request
Post Size 55x100x4.5/5.0mm D/W Pale 2.0mm,2,5mm,3.0mm
Leave a Message
Product Description
Products Description
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 0
Gabion wall is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion Basket is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.
Product Paramenters



Mesh wire diameter
3mm,4mm,5mm,6mm etc
Mesh Size
2''x2'', 3''x3'', 4''x4'', etc
Spring wire diameter
3mm,4mm,5mm,6mm etc
Panel Finish
Hot dipped galvanized
Galfan coated
Geotextile
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing
Wrapped with shrink film or packed in pallet

Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 1
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 2
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 3
Exhibition
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 4
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 5
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 6
Detail
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 7
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 8
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 9
1. Hot-dipped galvanized hesco barrier/hesco bastion surface treatment..
Surface treatment
min
max
Hot Dipped Galvanized Before Welded
40-60g/m2
80g/m2
Hot Dipped Galvanized Before Welded
240-260g/m2
260g/m2
Hot Dipped Galvanized After Welded
450-500g/m2
500g/m2
2.Hot-dipped galvanized hesco barrier/hesco bastion geotextile detail.
geotextile
color
thickness
weight
HG-1
Green
2.0-3.5mm
200-350g/m2
HG-2
Grey
2.0-3.5mm
200-350g/m2
HG-3
Dark yellow
2.0-3.5mm
200-350g/m2
HG-4
Earth yellow
2.0-3.5nmm
200-350g/m2

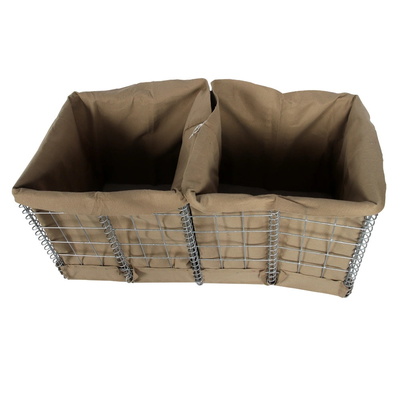

Military wall hesco barrier is gabion-like. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Standard
Height
Width
Length
MIL1 5442
54″(1.37m)
42″(1.06m)
32′9″(10m)
MIL2 2424
24″(0.61m)
24″(0.61m)
4′(1.22m)
MIL3 3939
39″(1.00m)
39″(1.00m)
32′9″(10m)
MIL4 3960
39″(1.00m)
60″(1.52m)
32′9″(10m)
MIL5 2424
24″(0.31m)
24″(0.61m)
10′(3.05m)
MIL6 6624
66″(1.68m)
24″(0.61m)
10′(3.05m)
MIL7 8784
87″(2.21m)
84″(2.13m)
91′(27.74m)
MIL8 5448
54″(1.37m)
48″(1.22m)
32′9″(10m)
MIL9 3930
39″(1.00m)
30″(0.76m)
30′(9.14m)
MIL10 8760
87″(2.21m)
60″(1.52m)
100′(30.50m)
MIL11 4812
48″(1.22m)
12″(0.30m)
4′(1.22m)
MIL12 8442
84″(2.13m)
42″(1.06m)
108′(33m)
MIL19 10842
108″(2.74m)
42″(1.06m)
10′5″(3.18m)



Feature
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 10
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 11
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 12

Packing & Delivery
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 13
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 14
Company Profile
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 15
Stone Cage Gabion Baskets Retaining Wall High Coating  steel welded mesh  geotextile thickness 16
Yuanmai Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chainlink fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences.
Yuanmai also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China.
