Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2

Place of Origin Hebei
Brand Name Yuanmai
Certification ISO 9001
Model Number YM—01
Minimum Order Quantity 1000pcs
Price $27 -$68/ Piece
Packaging Details Wrapped with shrink film then packed in wood pallet or iron pallet
Delivery Time <20 work days
Payment Terms L/C, T/T
Supply Ability 1800 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Palisade Fence Feature Easily Assembled,Waterproof,Eco Friendly,Rodent Proof,Rot Proof
Material Steel,Iron,Aluminum Usage Garden Decoration,Home Decration,Back Yard Fence,Protection
Finishing Powder Coated,PVC Coated,Hot Dip Galvanized,hot Dipped Galvanized,Heavy Duty Galvanized Color According To Customer's Request
Post Size 55x100x4.5/5.0mm D/W Pale 2.0mm,2,5mm,3.0mm
Leave a Message
Product Description
Products Description
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 0

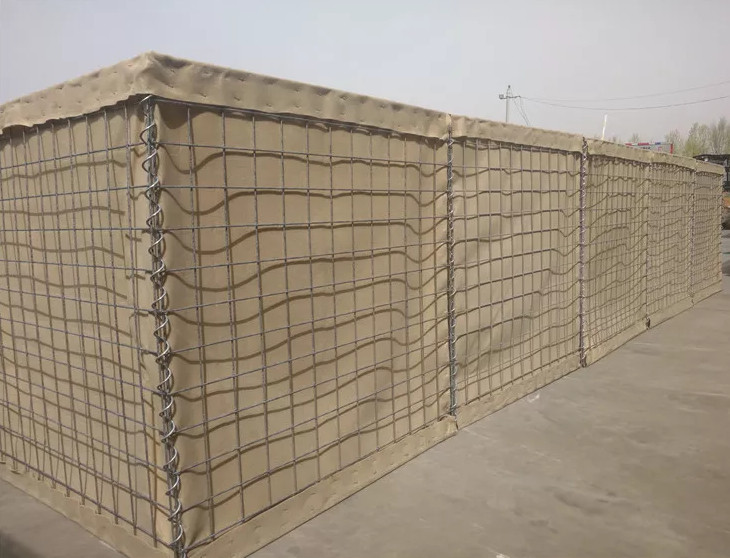

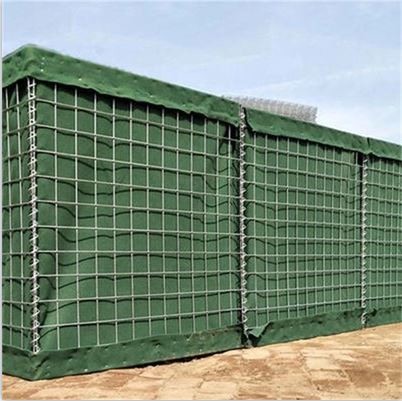

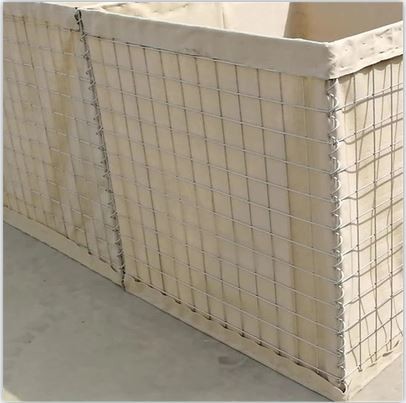

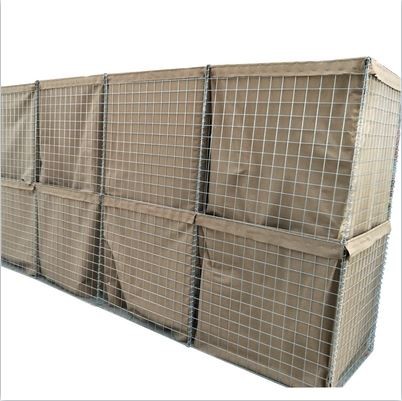

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.

It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with

non-woven geotextile.

Units can be extended and joined using the provided joining pins. It is easy installed with using minimal

manpower and commonly available equipment. After extended, it is filled into sand,stone, then hesco

barrier like a defensive wall or bunker, it is widely used for military fortification and flood control.
Product Paramenters
Model length (MM) width(MM) height(MM) Total cells
MIL1 10000 1080 1375 9
MIL2 1220 610 610 2
MIL3 10000 1000 1000 10
MIL4 6000 1500 1000 6
MIL5 3050 610 610 5
MIL6 3050 610 1680 5
MIL7 8520 2130 2210 4
MIL8 10000 1220 1375 9
MIL9 6840 760 1000 9
Mil10 7600 1520 2130 5

Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 1
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 2
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 3
Exhibition
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 4
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 5
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 6
Detail
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 7
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 8
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 9
Material : galvanized wire,hot dipped galvanized wire,galfan steel wire , Alu-zinc coated wire.
mesh wire diameter : 3mm,4mm,5mm,6mm and so on .
Mesh hole Size :50x50mm, 75x75mm, 76.2x76.2mm, 50x100mm, 100x100mm, as your request .
Spring wire diameter : 3mm,4mm,5mm,6mm etc .
army bastion Finished : Hot dipped galvanized and galfan .
steel wire barriers Geotextile : In heavy duty non-woven polypropylene .
steel wire barriers Geotextile color : beige-sand, olive green,gray etc .
steel wire barriers Geotextile thickness : 300g/m2, 350g/m2, 400g/m2 .
Package: Warapped with shrink film then packed in pallet,and the last packed with steel belt .



Feature
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 10
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 11
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 12
The explosion-proof wall is a solid wall that can maintain the protection performance required by the design when either side of the wall is subjected to the action of explosion shock wave and reaches the design pressure. The usual practices of explosion wall are: reinforced concrete wall, brick wall reinforcement and sand steel board. The design of explosion-proof wall should be based on the explosion overpressure value, pressure relief area and probability of explosion that may occur in the production site, combined with other explosion-proof measures taken in the process and construction and construction costs.
Packing & Delivery
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 13
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 14
Company Profile
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 15
Olive Green Gabion Military Sand Wall Hesco Barrier PVC Coated 300g/M2 16
Yuanmai Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chainlink fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences.
Yuanmai also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China.
