powder coated 868 656 double wire fence Twin Wire Galvanized Double Welded Wire Mesh Fence

Place of Origin china
Brand Name YM
Certification ISO-9001
Model Number YM-078
Minimum Order Quantity 50set
Price 10usd
Packaging Details pallet
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized Steel Product Name 200X50mm Hot Dipped Galvanized Welded Mesh Fencing 6/5/6 8/6/8 Double Wire Mesh Fence
Wire Guage : 3mm, 4mm,4.5mm,5mm Color Green
Aperture 50 X 150mm, 50 X 200mm, 75 X 250mm Advantage Anti-corrosion
Application Freight Yards, Sport Fields, Airports Name Powder Coated 868 656 Double Wire Fence Twin Wire Galvanized Double Welded Wire Mesh Fence
Leave a Message
Product Description
Specification

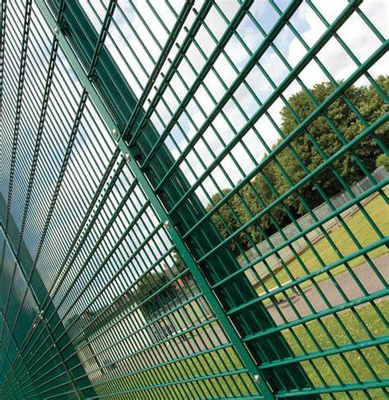

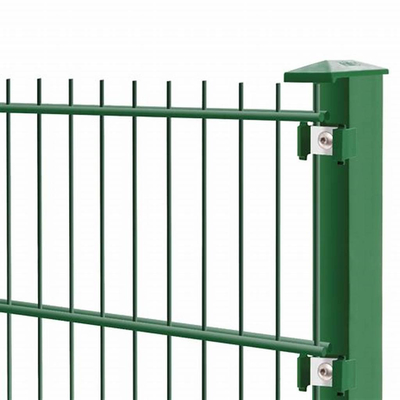

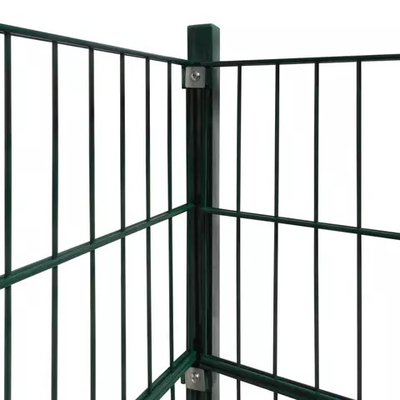

 Double wire fence panel features twin 8mm wires welded either side of 6mm vertical wires (868 Double Wire Mesh), giving would-be intruders little chance of breaking through. It is also available as a 656 Twin Wire Panel option. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.


Panel height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030 mm, 2230 mm, 2430 mm.
Panel width: 2000 mm, 2500 mm.
Materials: galvanized carbon steel wire, stainless steel wire, other material available.
Surface treatment:
2D fence panels made from galfan wire, then PVC powder coating (Min.100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: green, black, blue, white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.

Features:
•Easy Installation
•Cost effective
•Nice looking
•Different options on color according to the using environment
•Strong anti rust and anti corrosion ability
•Different options of install clips such as metal or plastic
•Different options of post





 Parameter

Double wire mesh fence
Height x Width Panel mm. Mesh Size mm. Wire diameter Post of Height mm
Wire dia
mm
Wire dia
mm
Wire dia
mm
630 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 1100
830 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 1300
1030 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 1500
1230 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 1700
1430 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 1900
1630 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 2100
1830 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 2400
2030 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 2600
2230 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 2800
2430 x 2500 50 x 200 8x2 + 6 6x2 + 5 6x2 + 4 3000



Hot Sell Powder Coating 868 Double Loop Wire Mesh Fence Price









  • Double horizontal wire fence has the features of grid structure, beauty and practical, landscaping. In addition, Double horizontal wire fence is easy for plants to climb and widely used in parks and living areas.
  • Because of the Double horizontal wire fence features of easy transportation and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones. Double horizontal wire fence as professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.
  • The Double horizontal wire fence price is under the medium level, it is widely used in industrial sites, playing fields, entertainment, schools and nurseries as security fencing.



  • Double horizontal wire fence has the features of grid structure, beauty and practical, landscaping. In addition, Double horizontal wire fence is easy for plants to climb and widely used in parks and living areas.
  • Because of the Double horizontal wire fence features of easy transportation and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones. Double horizontal wire fence as professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.
  • The Double horizontal wire fence price is under the medium level, it is widely used in industrial sites, playing fields, entertainment, schools and nurseries as security fencing.

Hot Sell Powder Coating 868 Double Loop Wire Mesh Fence Price
