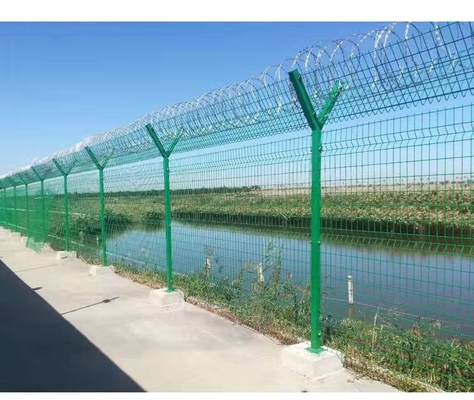

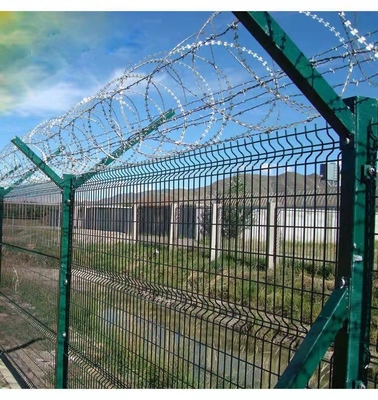

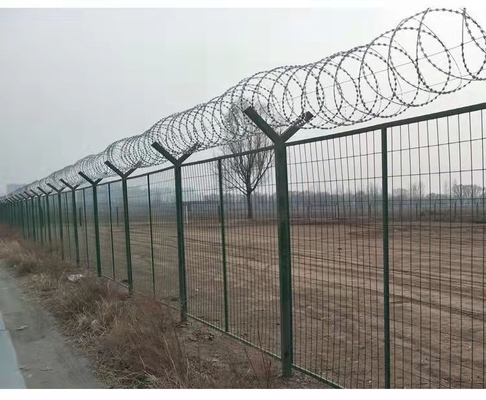

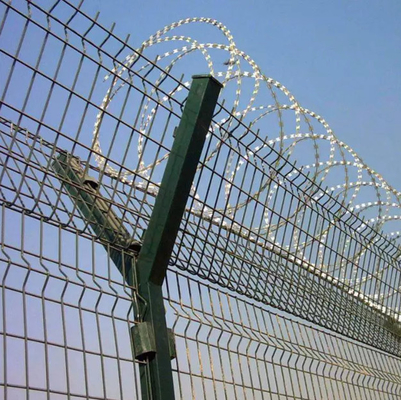

Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | YMWY |
| Certification | ISO9001 |
| Model Number | 05 |
| Minimum Order Quantity | 50sets |
| Price | usd18-usd50 |
| Packaging Details | pallet |
| Delivery Time | 20-60days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000 Set/Sets per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Garden Fence, Highway Fence, Sport Fence, Farm Fence | Material | Low Carbon Steel Wire,Al Mg Alloy Wire |
|---|---|---|---|
| Standard Length | 2m,2.5m | Mesh | 75mm X 12.5mm |
| Diameter Wire | 4mm -7.5mm | Products Name | Airport Fence |
| Color | Customized | Wire Diameter | 4mm |
| Mesh Size | 50*200mm | Surface Treatment | Hot Dipped Galvanized And Powder/PVC Coated |
Product Description
High-quality perimeter security fencing system used in yard,Airport ,garden,Sub-Station
Product Description Airport Security Fencing is also known as “Y-Shape security fence”. It is strengthened by the v-shaped support arm and welded mesh, security fittings and hot-dip galvanized concertina razor .This type of airport fence is widely used around the airport all over the world, also as as military fence and harbor fences.
The fence panel is welded by galvanized wire, and then bend the V rigid, the last process is polyester powder coating, it is also named powder spray. The Y post is welded by square tube. The most common top razor wire is BTO-22.
Features:
• Not easy to do Installation
• Reasonable cost
• Nice looking
• Dark Green color --RAL6005
• Looks professional when used in Airport
• Anti jump over
Product Specification
Large panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 2.03m, 2.23m, 2.43m, 2.63m |
| Mesh: | 30x70mm, 50x100mm, 50x150mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 4, 5 |
| Finish: | Galvanized and powder coated |
| Nos. of brackets | 4, 5, 6 |
V panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 0.53m, 0.63m, 0.73m |
| Mesh: | 30x70mm, 50x100mm, 50x150mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 2 |
| Finish: | Galvanized and powder coated |
| Nos. of brackets | 2 |
Post
| Section size : | 60x60mm, 80x80mm |
| Wall thickness: | 2.0, 2.5, 3.0mm |
| Overview height: | 2700+530mm, 2900+530mm, 3200+630mm, 3500+730mm |
Product details
Accessories:
• 2 pcs of post plastic rain hats
• Big Plastic Clamps For Post and Big Panel with bolts and nuts
• Small Plastic Clamps For Post and V Panel with bolts and nuts
• Clips for Big panel and V panel
• Tie wire for V panel and razor wire
Fence panel
Spike
Fence connection
Fence post Installation details
Product testing
Fence application
Airports, highways, railways, isolation and protection on both sides of the bridge, airport, port, dock security, municipal
construction parks, lawns, zoos, pools, roads, residential areas isolation and protection, hotels,hotels, Supermarkets, protection and decoration of entertainment venues, etc
Company profile
Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.
