Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 05
Minimum Order Quantity 50sets
Price usd18-usd50
Packaging Details pallet
Delivery Time 20-60days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Garden Fence, Highway Fence, Sport Fence, Farm Fence Material Low Carbon Steel Wire,Al Mg Alloy Wire
Standard Length 2m,2.5m Mesh 75mm X 12.5mm
Diameter Wire 4mm -7.5mm Products Name Airport Fence
Color Customized Wire Diameter 4mm
Mesh Size 50*200mm Surface Treatment Hot Dipped Galvanized And Powder/PVC Coated
Leave a Message
Product Description
High-quality perimeter security fencing system used in yard,Airport ,garden,Sub-Station
Product Description

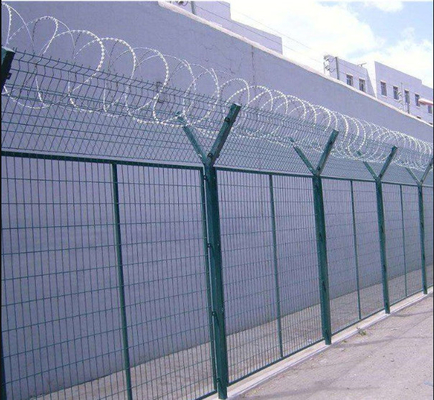

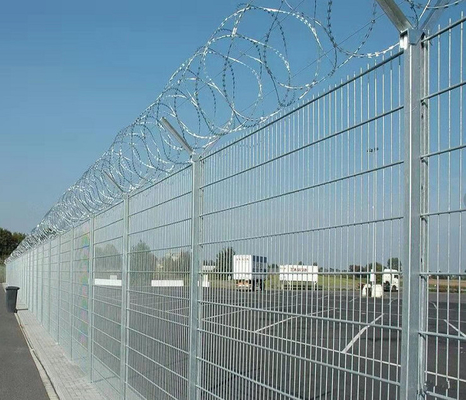

Airport fence is called by its application, it is a derivatives of common welded mesh panel, and on the top of airport fence it has V shape mesh panel and security razor wire to enhance the security. This type of airport fence is widely used around the airport all over the world, also as as military fence and harbor fences.

The fence panel is welded by galvanized wire, and then bend the V rigid, the last process is polyester powder coating, it is also named powder spray. The Y post is welded by square tube. The most common top razor wire is BTO-22.



Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 0Large panel

Product Specification

Width : 2.50m, 2.75m, 3.0m
Height: 2.03m, 2.23m, 2.43m, 2.63m
Mesh: 30x70mm, 50x100mm, 50x150mm
Wire thickness: 4.0mm,4.5mm,5.0mm
Rigid V: 4, 5
Finish: Galvanized and powder coated
Nos. of brackets 4, 5, 6





V panel

Width : 2.50m, 2.75m, 3.0m
Height: 0.53m, 0.63m, 0.73m
Mesh: 30x70mm, 50x100mm, 50x150mm
Wire thickness: 4.0mm,4.5mm,5.0mm
Rigid V: 2
Finish: Galvanized and powder coated
Nos. of brackets 2





Post

Section size : 60x60mm, 80x80mm
Wall thickness: 2.0, 2.5, 3.0mm
Overview height: 2700+530mm, 2900+530mm,
3200+630mm, 3500+730mm

Razor wire

Outside: 500mm, 600mm, 700mm
Blade thickness: 0.5, 0.32mm
Core wire: 2.5, 2.25mm
Finish: Galvanized
Product details
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 1
Fence panel
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 2
Spike
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 3
Fence connection
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 4
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 5
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 6
Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 7

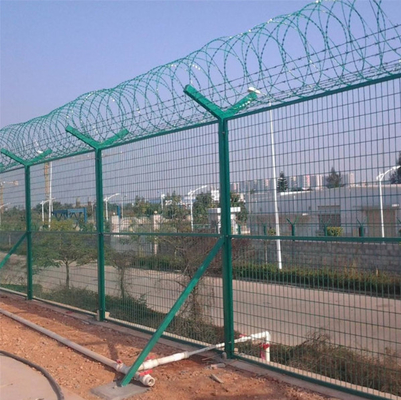

Fence post Installation details



Product testing

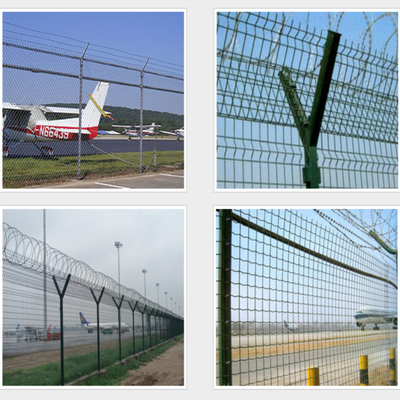

Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 8Airport Fence Main Application :

Fence application

Airports, highways, railways, isolation and protection on both sides of the bridge, airport, port, dock security, municipal
construction parks, lawns, zoos, pools, roads, residential areas isolation and protection, hotels,hotels, Supermarkets, protection and decoration of entertainment venues, etcAirport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 9

Company profile

Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fence, located in Anping County, which is called “the Native land of Wire Mesh” in China. Tailong supplies quality fence and related products for a variety of applications. Our technological expertise and commitment to providing our customers with consistent quality fencing products enable us to become a long term partner for your business.

Airport Fence 3D Wire Mesh Fence Board Decorative Garden Fences 10
