Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence

Place of Origin Hebei
Brand Name Yuanmai
Certification ISO 9001
Model Number YM—01
Minimum Order Quantity 1000pcs
Price $27 -$68/ Piece
Packaging Details Wrapped with shrink film then packed in wood pallet or iron pallet
Delivery Time <20 work days
Payment Terms L/C, T/T
Supply Ability 1800 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Palisade Fence Feature Easily Assembled,Waterproof,Eco Friendly,Rodent Proof,Rot Proof
Material Steel,Iron,Aluminum Usage Garden Decoration,Home Decration,Back Yard Fence,Protection
Finishing Powder Coated,PVC Coated,Hot Dip Galvanized,hot Dipped Galvanized,Heavy Duty Galvanized Color According To Customer's Request
Post Size 55x100x4.5/5.0mm Wire Thickness 4.00mm 4.50mm 5.00mm
Leave a Message
Product Description
Products Description
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 0

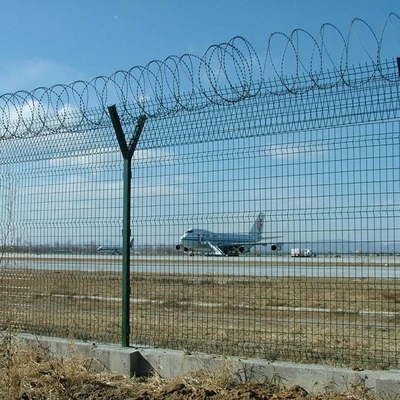

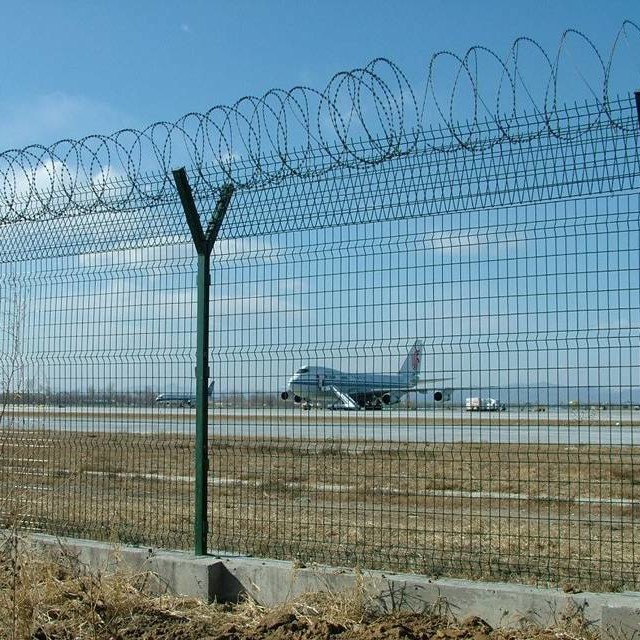

Airport Security Fencing
Airport fence, also called airport fencing, is a physical barriers to deter and delay the access of unauthorized person ontononpublic areas of airports. These are usually permanent barriers and designed to be an obvious visual barrier as well as a physical one. They also serve to meet safety requirements in many cases. We have three types of security fencing, which is popular with our customers: chain link fence, 358 high security fence and curvy wire mesh fence.

Product Paramenters

Notes:

1. Height: the height of the airport fence, measure from ground to the top point of razor wire.
2. Width: the horizontal distance of airport fence, measure from center to center of the square post.
3. Wire Thickness: diameter of the low carbon steel wire of airport fence panel.
4. Mesh Size: the horizontal and vertical length of airport fence panel mesh.

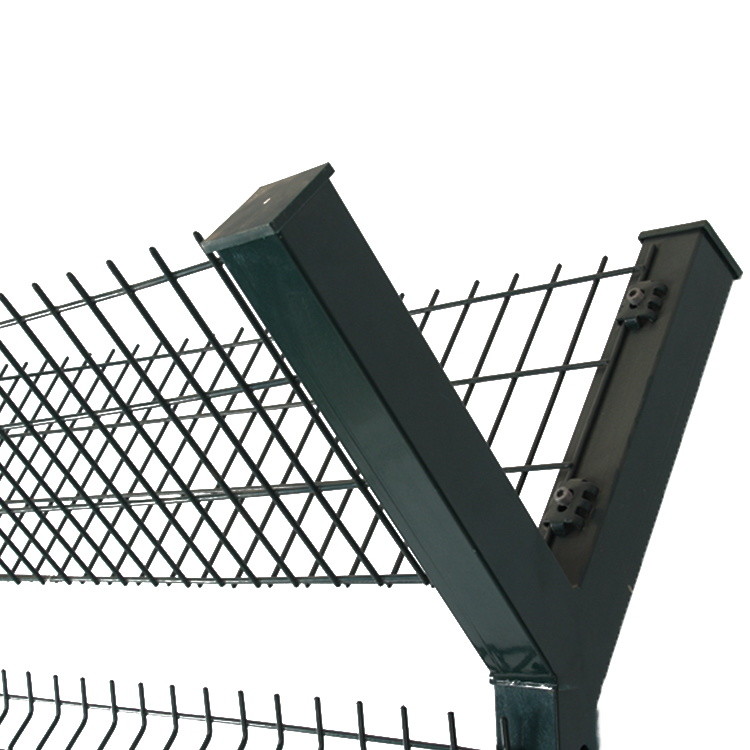

5. Y Shape Post: a V shape post welded on the main post, for setting up the V panel and razor wire on top.
6. Clamp: special anti-UV plastic clamp for setting up the airport fence panel and post.
7. Hot Dipped Galvanized: dip the airport fence fence in to a container which is full of liquid zinc, to prevent the airport fence panels from getting rusty.
8. Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the airport fence panels from getting rusty.
flat mesh panel
height(m)
2.03,2.23,2.43
width(m)
2.5 or 3.0
hole opening(mm)
50*100,50*150
wire diameter(mm)
4-5
material
low carbon steelwire,galvanized wire
curve quantity
normal 2 height:3-4
V type mesh panel
height(m)
0.5
length(m)
2.3 or 3
post type with V arm
square post(mm)
60*60*2, 60*60*3
rectangularpost(mm)
60*80*3
length(m)
normal 2.8-3

material
low carbonsteelwire,galvanized wire

clamps
steel or plastic
finished
pvc coated
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 1
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 2
Detail
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 3
Airport fence
Airport fence products are hot-dip galvanized using high quality polyester powder electrostatic spraying, using internationally popular RAL colors.
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 4
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 5
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 6
Feature
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 7
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 8

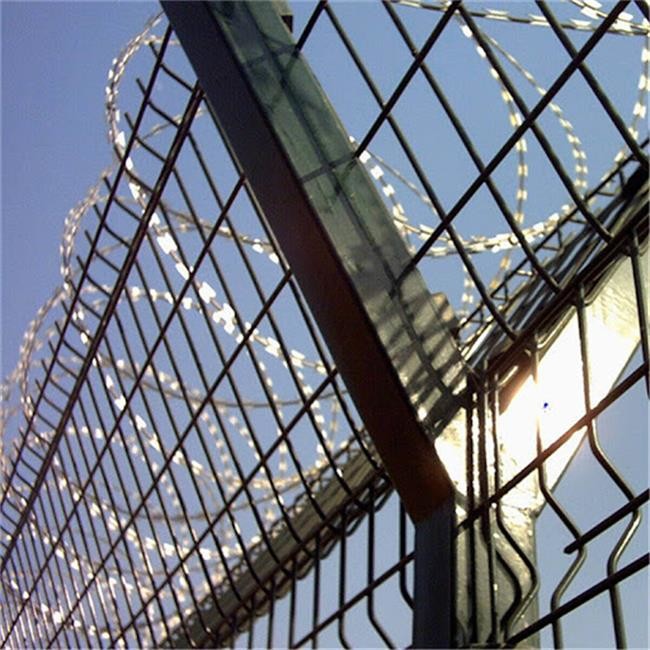

If the top of the airport guardrail is equipped with razor blade, razor blade barbed rope and a good enhancement of safety protection performance. Using electroplating, hot plating, spray, dip and other anticorrosive forms, with good anti-aging, anti-sun, weather and so on. Its products are beautiful in shape and diverse in color, which not only plays the role of fence, but also plays the role of beautification. Due to its high safety and good anti-climbing ability, special SBS fastener is used to connect the mesh, which effectively prevents man-made destructive disassembly. Four transverse bending reinforcement bars significantly increase the strength of the mesh surface.
Application
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 9
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 10
Isolation and protection on both sides of airports, roads, railways and Bridges, security protection of airports, ports and wharves, isolation and protection of parks, lawns, zoos, pools and lakes in municipal construction, isolation and protection of residential areas, protection and decoration of hotels, hotels, supermarkets and entertainment places, etc.
Packing & Delivery
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 11
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 12
Company Profile
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 13
Galvanized Airport Perimeter Fence 50*100mm 50*150mm Hole Y Post Fence 14
Our Advantages:
1.Manufacturer with more than 30years history.
2.With lots of certificates,High quality with prrety competitive price.
3.Delivery period 15-20 days,Timely and effective after service.
4.Provision of samples.
