High quality hot dipped galvanized diamond razor barbed wire mesh anti climb welded concertina blade razor wire fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel Wire | Type | Barbed Wire Coil |
---|---|---|---|
Surface Treatment | Galvanized | Application | Railway, Private Area |
Wire Diameter | 2.5mm+-0.1mm | Razor Blade Type | Cbt-65, Bto-22etc |
Razor Type | Single Razor,cross Razor,concertina Razor | Usage | High Security Area |
Barb Length | 12 Mm - 65 Mm | Barb Spacing | 26mm - 100mm |
Barb Width | 15mm - 32mm | Color | Customized Color |
Product Description
Razor barbed wire is a mesh of metal strips with sharp edges whose purpose is to prevent passage by humans. The term "razor barbed wire", through long usage, has generally been used to describe barbed tape products. While razor barbed wire is much sharper than the standard barbed wire, it is named after its appearance, but is not actually razor sharp. However, the points are very sharp and made to rip and grab onto clothing and flesh.
Product Specification

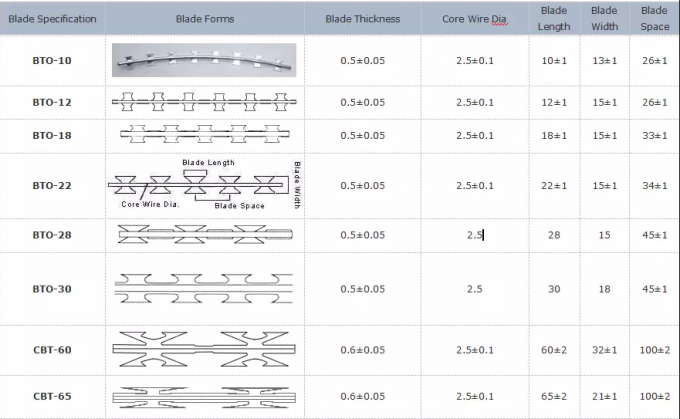

Outside Diameter | No. of Loops | Standard covering length | Blade Type | Notes |
450mm | 33 | 7-8m | CBT-60. 65 | single coil |
500mm | 56 | 12-13m | CBT-60. 65 | single coil |
700mm | 56 | 13-14m | CBT-60. 65 | single coil |
960mm | 56 | 14-15m | CBT-60. 65 | single coil |
450mm | 56 | 8-9m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
500mm | 56 | 9-10m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
600mm | 56 | 10-11m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
600mm | 56 | 8-10m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
700mm | 56 | 10-12m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
800mm | 56 | 11-13m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
900mm | 56 | 12-14m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
960mm | 56 | 13-15m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
980mm | 56 | 14-16m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
<<click here for the best price or customize your own specification
Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
Stainess steel core wire and blade
PVC coated core wire and bla
Or hot-dipped galvanized core wire+stainless steel blade
Hot Sale Size: BTO22, CBT65
Concertina single coil razor blade wire |
|
Concertina cross type razor blade wire |
|
Flat wrap galvanized razor blade wire |
|
Welding razor wire mesh fence |
|

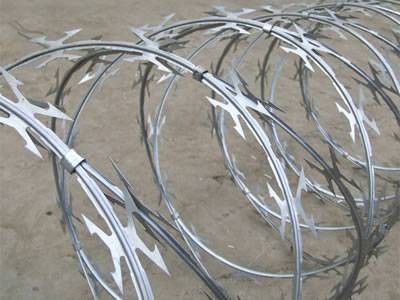

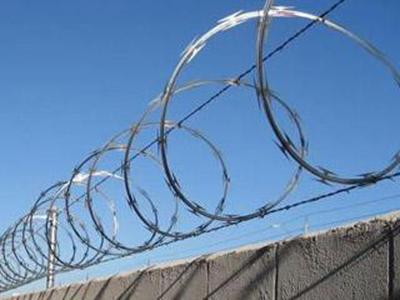

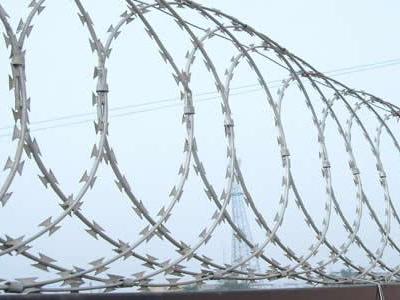

Detail Images
Razor barbed tape is a kind of modern security fencing materials fabricated with razor sharp steel blade high tensile wire.Barbed tape can be installed to achieve the result of frighening and stopping to the aggressive perimeter intruders,with piercing and cutting razor blades mounted at the top of the wall,also the special designs making climbing and touching extremely difficult.The wire and strip are glavanzed to prevent corrosion.

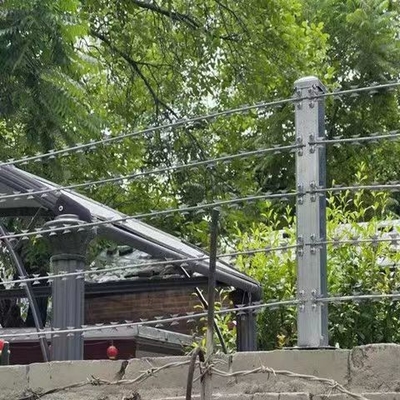

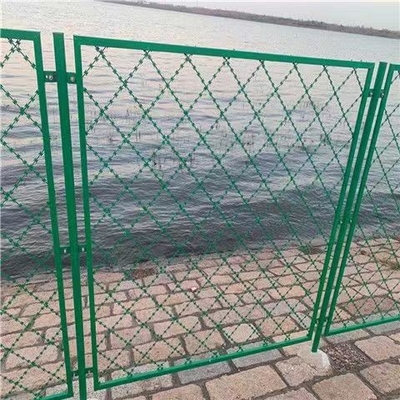

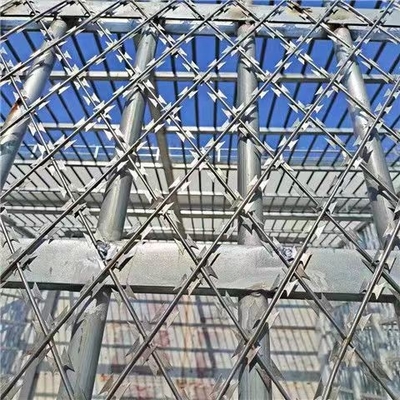

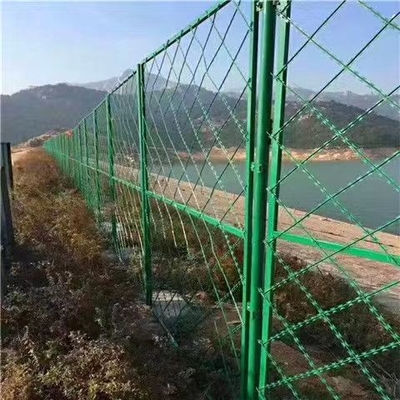

Fence application
