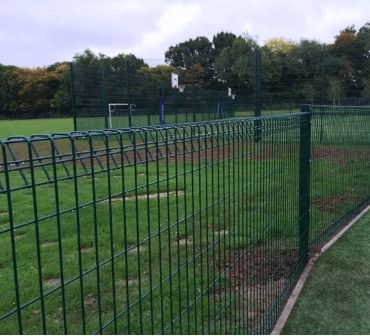

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence

Place of Origin Hebei, China
Brand Name YMWY
Certification ISO9001
Model Number 01
Minimum Order Quantity 50sets
Price usd8-usd15
Packaging Details pallet
Delivery Time 20-60 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Welded Mesh Material Low Carbon Steel
Hole Shape Square Usage Garden Fence, Garden Decoration
Common Wire Diameter 4mm, 5mm, 6mm Width 0.5-3m
Panel Size 2.3m*3m,1.8*3m,1.6*3m,1.5*3m,etc Mesh 50 X 150; 50 X 200; 75 X 150
Post Thickness 1.5mm 2.0mm 2.5mm 3.0mm Common Mesh Size 50mm*200mm,50mm*180mm,etc
Leave a Message
Product Description

High Quality Stainless Steel Iron Rebar Welded PVC and Galvanized Wire Mesh Fence Panels


Product Description

Roll top fence, also known as BRC fence , is a kind of specially designed welded wire mesh fence with unique top and bottom "rolled" edges. It is manufactured from high tensile steel wires that are welded together and bent to form a triangular roll top surface at its top and bottom to provide a firm structure and accurate mesh openings. Its rolled edges not only offer an authentic user-friendly surface, but also give maximum rigidity and excellent visibility. Currently, it is very popular among Singapore, Japan, South Korea and Southeast Asia regions and is mainly used as security fence or barriers in, including but not limited to, parks, schools, playgrounds, factories, parking lots, residential communities, etc..

BRC fencing panel:
The panels consist of a unique and attractive, closed beam section located along the top and bottom edge of the panel. It is user friendly with no sharp or raw edges. These type of fencing panels are ideal where safety is a consideration.

BRC fence feature:
Roll top edges provides both beautiful appearance and rigid structure.

Welded joints ensure the firm structure and long service life. High quality raw materials and galvanized and powder coating treatment ensure our BRC fence has excellent corrosion and rust resistance performance and great weatherproof performance. The mesh opening of the BRC fence panels provides excellent visibility and security. All colors are available in Ral to adapt to most environments. Less maintenance and long service life.


Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 0

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 1

Product Specification

Product Name
Ornamental BRC Roll Top welded wire mesh fence
Q195, Q235
Surface treatment
Hot dip galvanized, powder coating
good corrosion resistance and oxidation resistance
Round tube Post
OD48x1.5mm, OD48X2.0mm, OD60x1.5mm, OD60X2.0mm,
Panel width
2000mm, 2200mm, 2500mm, 3000mm or customized
Panel height
1030mm, 1230mm, 1530mm, 1830mm, 2030mm, 2230mm, 2430mm or customized
Mesh openning
Wire diameter
In inch
In metric unit(mm)
2" x 4"
50mm x 100mm
2" x 6"
50mm x 150mm
2" x 8"
50mm x 200mm
3" x 8"
75mm x 200mm
4" x 8"
100mm x 200mm
4" x 12"
100mm x 300mm


RBC fence Installation:
Roll top fence is also kind of easy installation production. Need to follow the normal installation process of metal fence products. We will give an example of the BRC fence installation based on 2.5m width.

1.Measure the roll top fence width of per set, calculate correctly if need to install all post together. Setting up the post into the holes on the ground every 2.5 linear meter. If the ground is concrete, we need to set up the post flange plate with M10 (min) anchor bolts into the concrete ground. During measure process, please make sure the line is straight or it is followed your plan.We can not change it after setting up the post.

2.Take the roll top fence panel out and stand up close to the fence panel. Need to make sure there is little space between the BRC fence panel and post. It should be touch or has very small space which will not affect setting up the V clips.

3.Setting up the V clips by vertical distance according to the punched holes on the post. Normally it is about 450mm or 600mm for per V clip. If the bolts are self drilling bolts, then we do not need any holes on post, just drill the bolts into the post wall accordingly.

4.Installing post rain cap on the top of the post in the end. If the height of roll top fence is too difficult for installing post cap, please set up the post cap first before set up the post. If the post cap is metal cap and already been welded on the post, then do not need to do any work on the post cap installation.

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 2

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 3


Detail Images


Economic Products Roll top fence is kind of economic products in CHINGO fence series. This type of fence is much cheaper than 358 mesh fence and steel palisade fence, etc. Of course, the security function is not like others. The V clips is also another factor to make it economic.

Rolling Top / Bottom Rolling top and bottom is the most important feature of BRC fence. Chingo roll top fence is the only one type of fence with rolling top and bottom. There are two main reason to design the fence like this. First is to make it stronger in horizontal line. Another is to make it looks more beautiful.

See Through Panel Chingo roll top fence is a kind of see through panel in welded fencing series. It's very easy to see what's in another side of the fence. If you want to show your garden or building to the people, roll top fenceis a good choice, but if you need privacy to protect, roll top fence is not a good choice.

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 4

Fence application

This roll top fence / BRC is very popular in Australia, Southeast Asia,Euro Market,etc. It is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.

Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 5

Packing and Delivery Outdoor Galvanized Welded BRC Mesh Fence/Roll Top Garden Security Fence 6
